Lathe
Lathe
KT-25

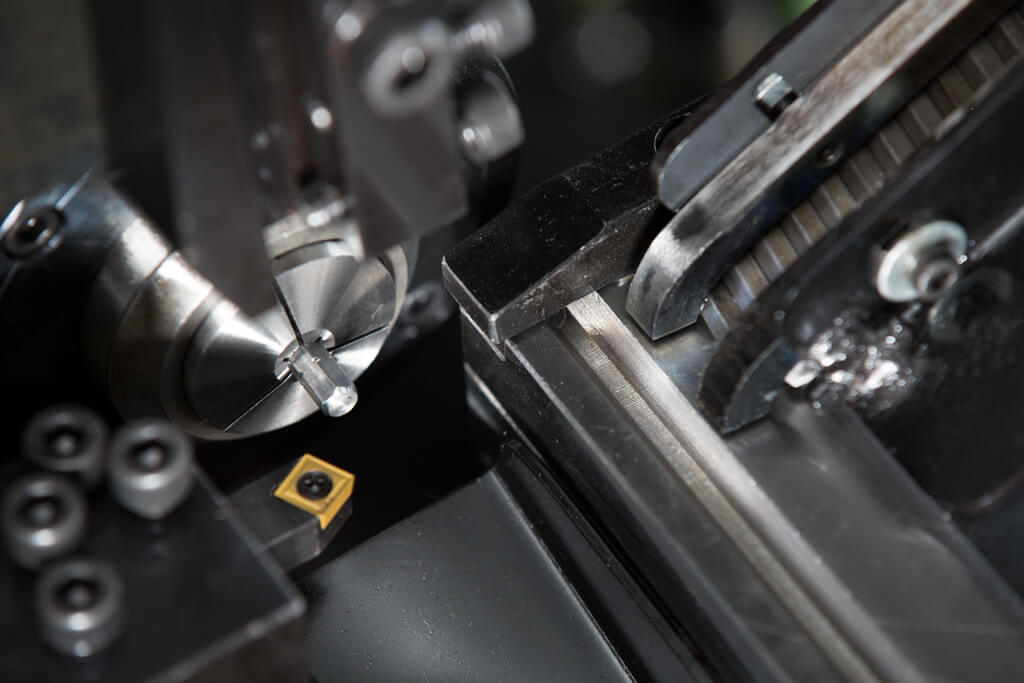

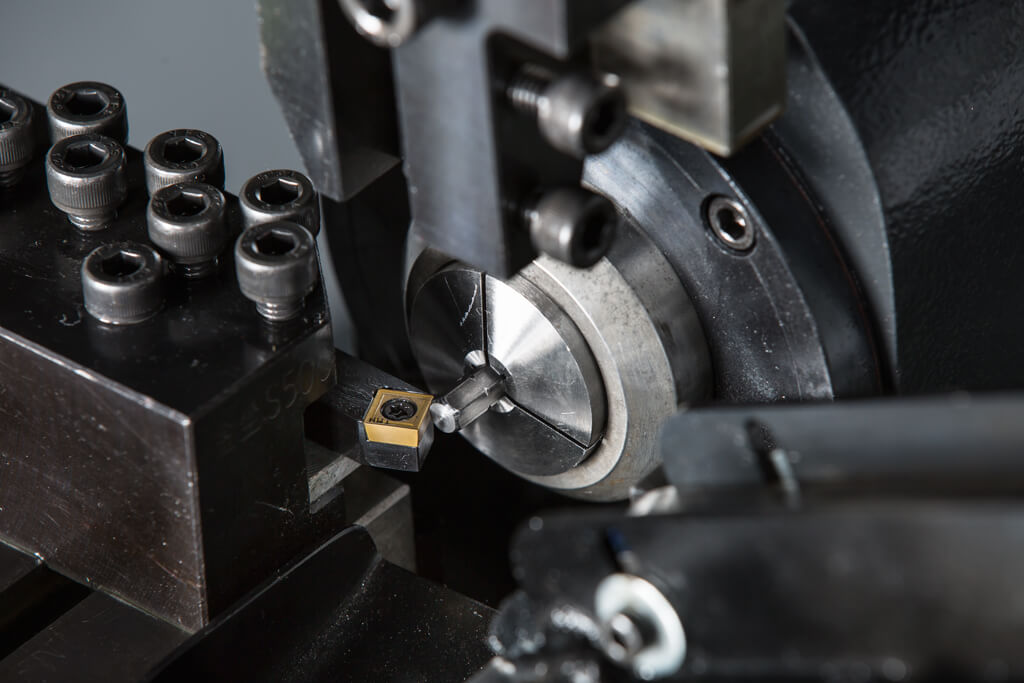

The concept of this is from Bench lathe with improvement. This machine is with high spin rotary cylinder and clamp. Focus on short bits, the turning process is extremely high stability. Multi turning function can process synchronize, surfacing and chamfering can be at optional Vibration bowl, it will be automation production from feeding to discharging. No need to stop lathe head for feeding. The performance and precision are higher. Production capacity will be increased.
Specification
Specifications
| KT-25A | |
|---|---|
| Workpiece Diameter： | 3 - 10mm |
| Workpiece Length： | 25 - 100mm |
| Material Type： | Hex/ Square/Round |
| Collet Chuck： | 25 type |
| Spindle Motor： | 2HP |
| Hydraulic Motor： | 1HP |
| Capacity (pce/min.)： | 12 - 25pcs. |
| Machine Size(LxWxH)： | 150x90x150 |
| Machine Weight： | 380kg |
