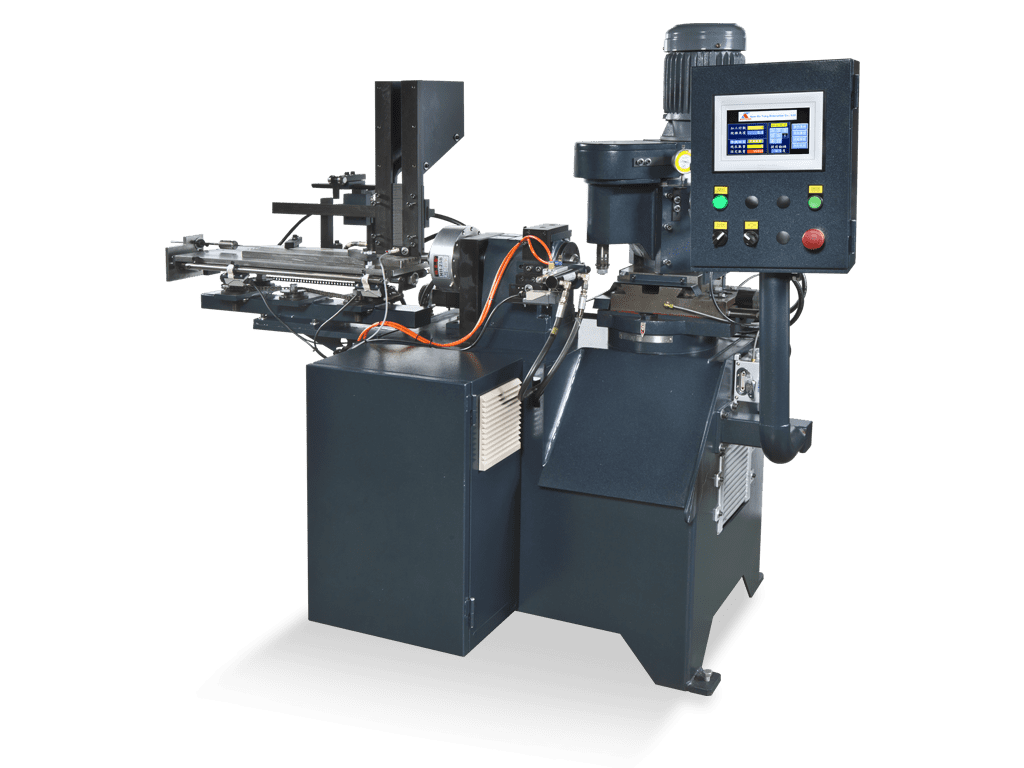

KT-30/50/80GNC

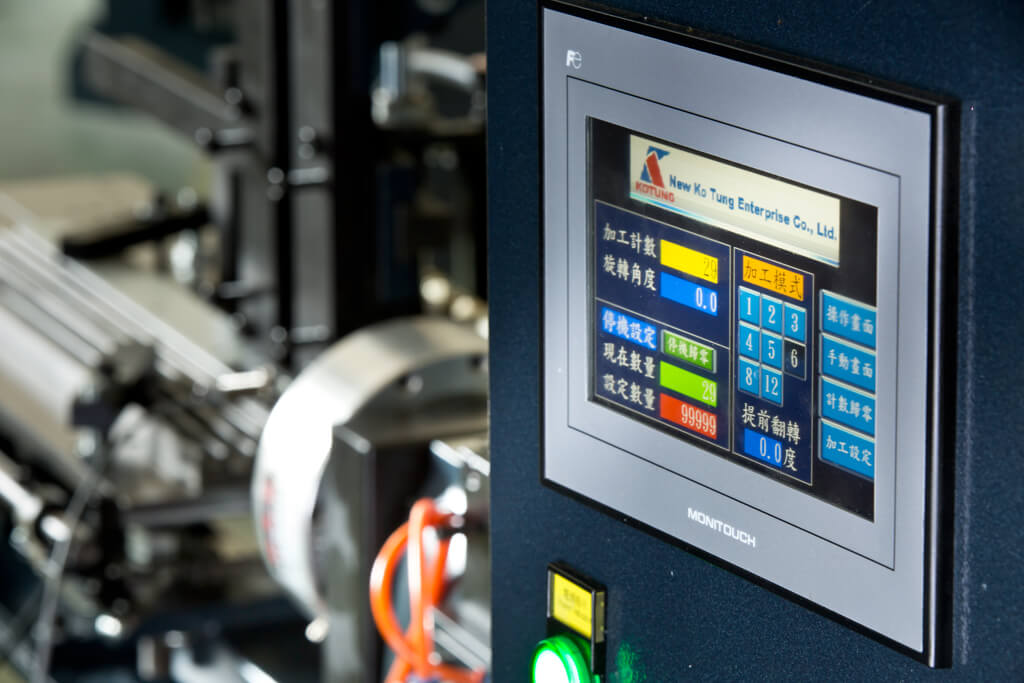

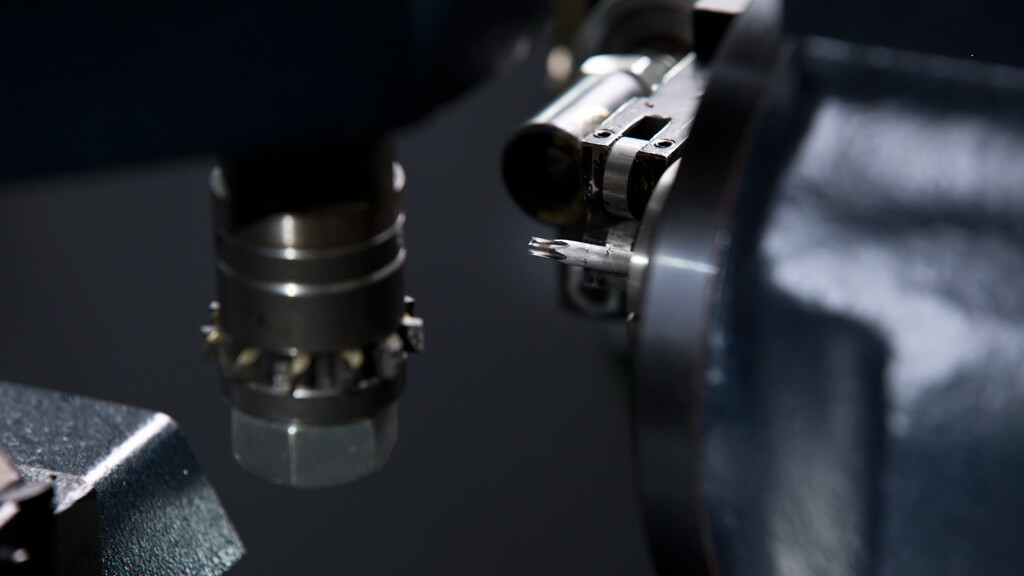

Combine the traditional screwdriver forming machine and human machine interface system to control and replace the splitter agnle milling of traditional mechanical structure. No need to open the clamp head to adjust bearing position to manufacture different screw heads. Simply use computer server system to control the cutting angle. The production process is simplify and more smooth.
Specification
Specifications
KT-30GNC | KT-50GNC | KT-80GNC | |
---|---|---|---|
Workpiece Diameter: | 3 - 10mm | 4 - 12mm | 4 - 15mm |
Workpiece Length: | 25 - 100mm | 80 - 250mm | 110 - 350mm |
Material Type: | Hex/ Square/Round | Hex/ Square/Round | Hex/ Square/Round |
Collet Chuck: | 25 tyoe | 25 type | 25 type |
Spindle Motor: | 2HP | 2HP | 3HP |
Hydraulic Motor: | 1HP | 1HP | 2HP |
HMI Control System: | HAKKO 7" | HAKKO 7" | HAKKO 7" |
Capacity (pce/min.): | 10 - 25pcs. | 8 - 15pcs. | 6 - 12pcs. |
Complete Product Type: | PH/SL/PZ/TORX | PH/SL/PZ/TORX | PH/SL/PZ/TORX |
Machine Size(LxWxH): | 170x110x155 | 170x120x160 | 180x120x170 |
Machine Weight: | 500kg | 550kg | 600kg |
