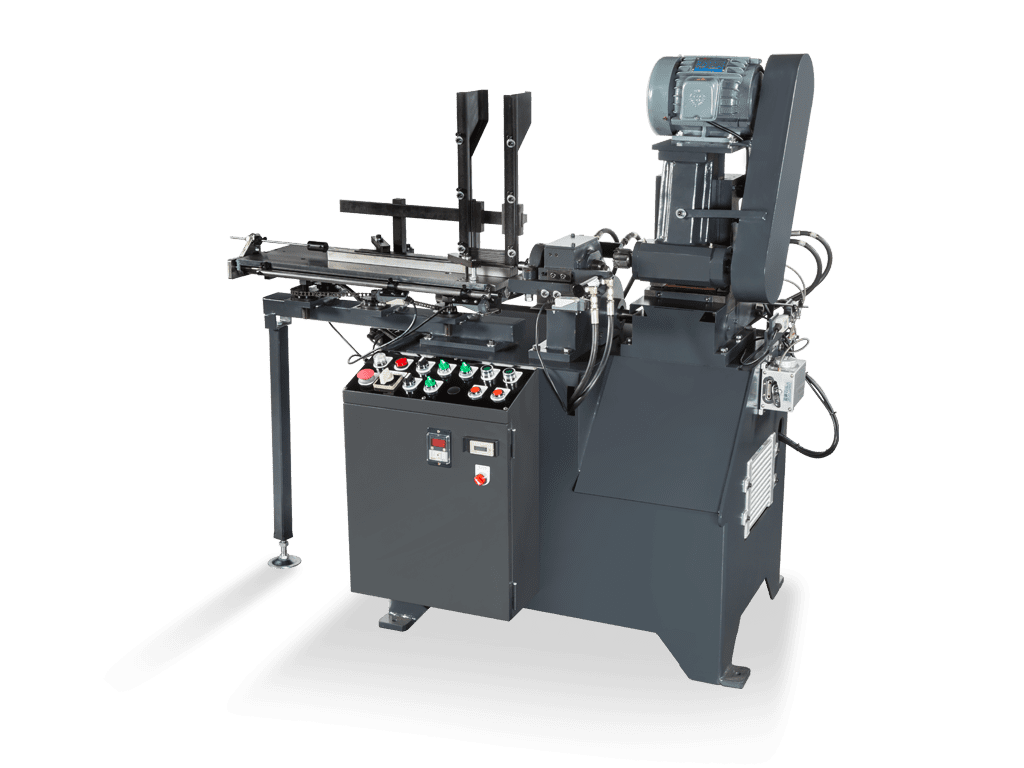

KT215/225

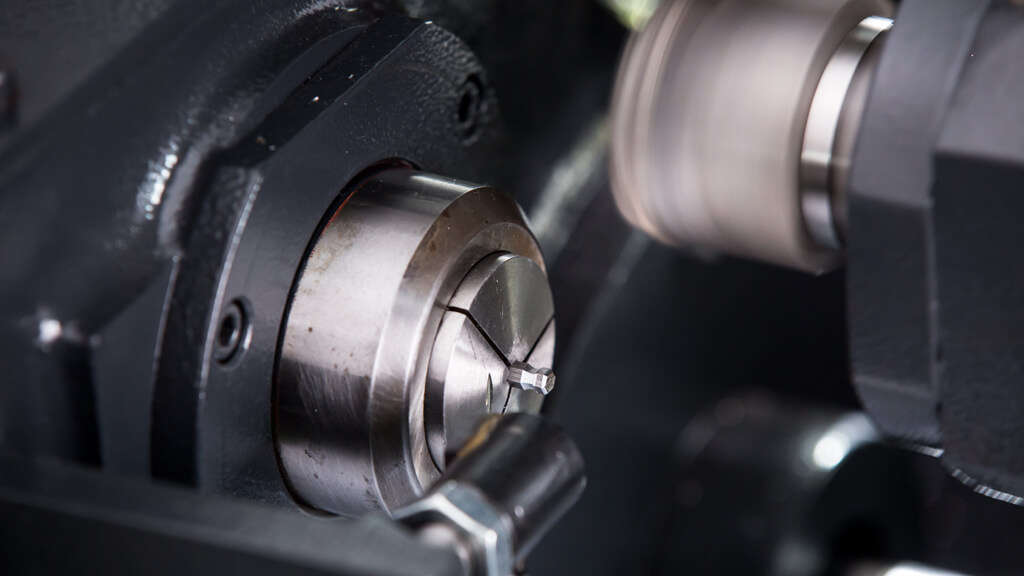

Ball Point Milling Machine is developed to react to multi type screwdriver tools. Manufacture concept is similar to Hex/Square milling machine. By using unique splitter to calculate the precise angle, proceeding the milling process and use ball type cutters to spin the angle to mill the perfect Hexagonal Ball shape.

Specification

Specifications

  KT-215S KT-225L
Workpiece Diameter: 2 - 6mm 4 - 12mm
Workpiece Length: 80 - 200mm 100 - 350mm
Material Type: Hex/ Square Hex/ Square
Collet Chuck: 25 type 25 type
Spindle Motor: 2HP 3HP
Hydraulic Motor: 1HP 2HP
Capacity (pce/min.): 8 - 15pcs. 6 - 12pcs.
Complete Product Type: Ball Point Ball Point
Machine Size(LxWxH): 170x110x155 180x120x165
Machine Weight: 520kg 580kg
