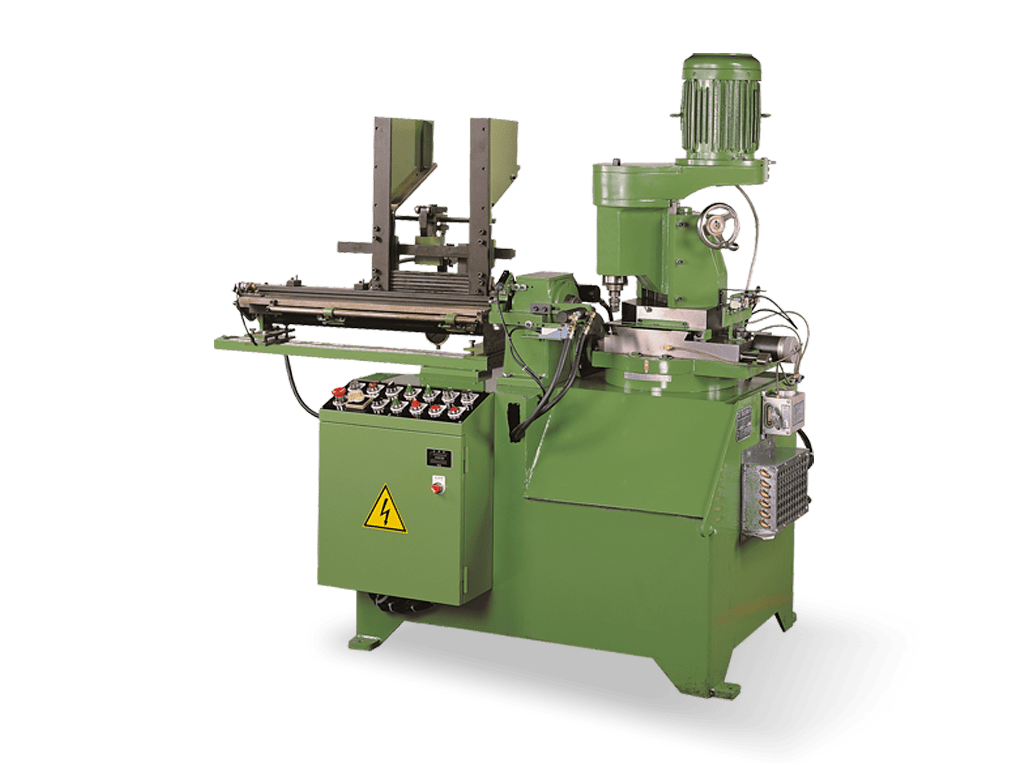

KT-80/80G

Screwdriver forming machine is the earliest developed model type. By using unique reticle design to calculate the precise milling angle of screwdriver heads to form multi-typed screwdrivers. After improving the design of split disk structure, these machines can spin faster, more precisely, and more stable with low failure rate which can increase the machine utilization rate and prolong life cycle. Single purpose model-milling single specific shape screwdriver head.ex, Phillips/Slotted/Pozi/Torx-single shape only

Specification

Specifications

  KT-30 KT-30G KT-50 KT-50G KT-80 KT-80G
工作物外徑: 3 - 10mm 3 - 10mm 4 - 12mm 4 - 12mm 4 - 15mm 4 - 15mm
Workpiece Length: 25 - 100mm 25 - 100mm 80 - 250mm 80 - 250mm 110 - 350mm 110 - 350mm
Material Type: Hex/ Square/Round Hex/ Square/Round Hex/ Square/Round Hex/ Square/Round Hex/ Square/Round Hex/ Square/Round
Collet Chuck: 25 type 25 type 25 type 25 type 25 type 25 type
Spindle Motor: 2HP 2HP 2HP 2HP 3HP 3HP
Hydraulic Motor: 1HP 1HP 1HP 1HP 2HP 2HP
Capacity (pce/min.): 10 - 25pcs. 10 - 25pcs. 8 - 15pcs. 8 - 15pcs. 6 - 12pcs. 6 - 12pcs.
Complete Product Type: PH/SL or PZ/TORX PH/SL/PZ/TORX PH/SL or PZ/TORX PH/SL/PZ/TORX PH/SL or PZ/TORX PH/SL or PZ/TORX
Machine Size(LxWxH): 170x110x155 170x110x155 170x120x160 170x120x160 180x120x170 180x120x170
Machine Weight: 480kg 480kg 520kg 520kg 580kg 580kg
