Specialty Machinery
Specialty Machinery

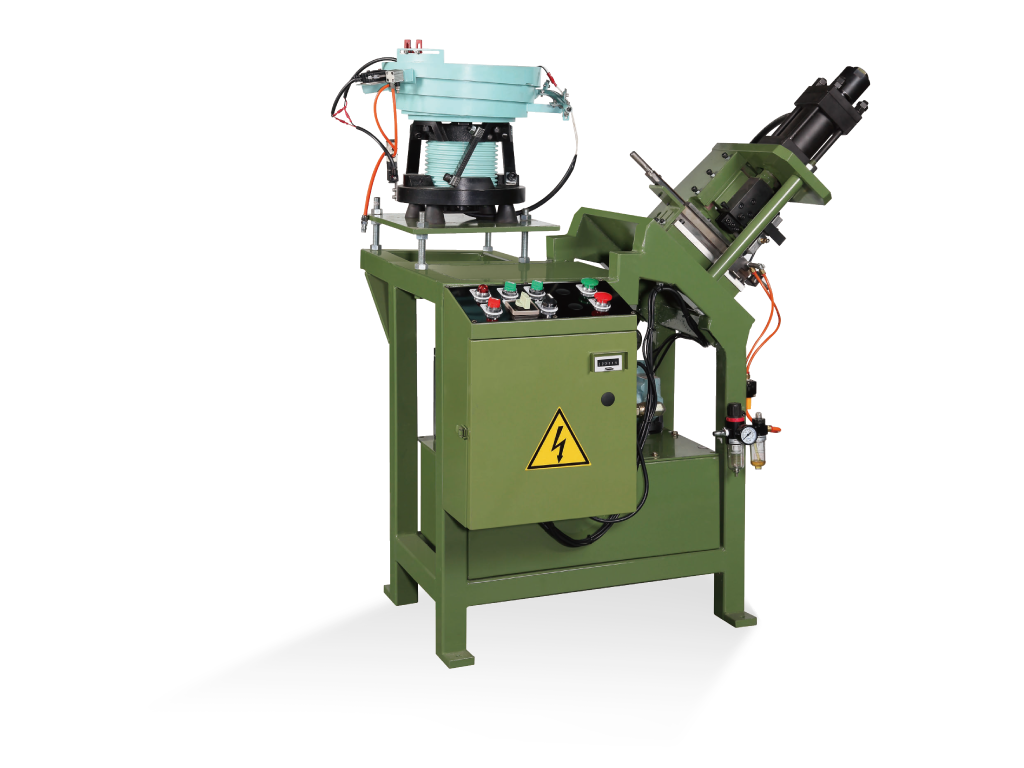

KT-20A

This machine is developed to work with the screwdriver machine. KT-20A is using oblique type machine base, set with a vibration bowl for automatic feeding, specialized to process bits stamping process. KT-20B is flat type machine frame for processing longer length workpiece with single / two sides printing option. Multi-optional mixture can smooth the production procedure.

Specification

Specifications

  KT-20A KT-20B
Workpiece Diameter: 4 - 6.35mm 3 - 10mm
Workpiece Length: 25 - 50mm 25 - 250mm
Material Type: Hex/Round Hex/Round
Hydraulic Motor: 2HP 2HP
Capacity (pce/min.): 50 - 100pcs. 50 - 80pcs.
Machine Size(LxWxH): 120x90x140 130x80x155
Machine Weight: 200kg 220kg
