Specialty Machinery
Specialty Machinery

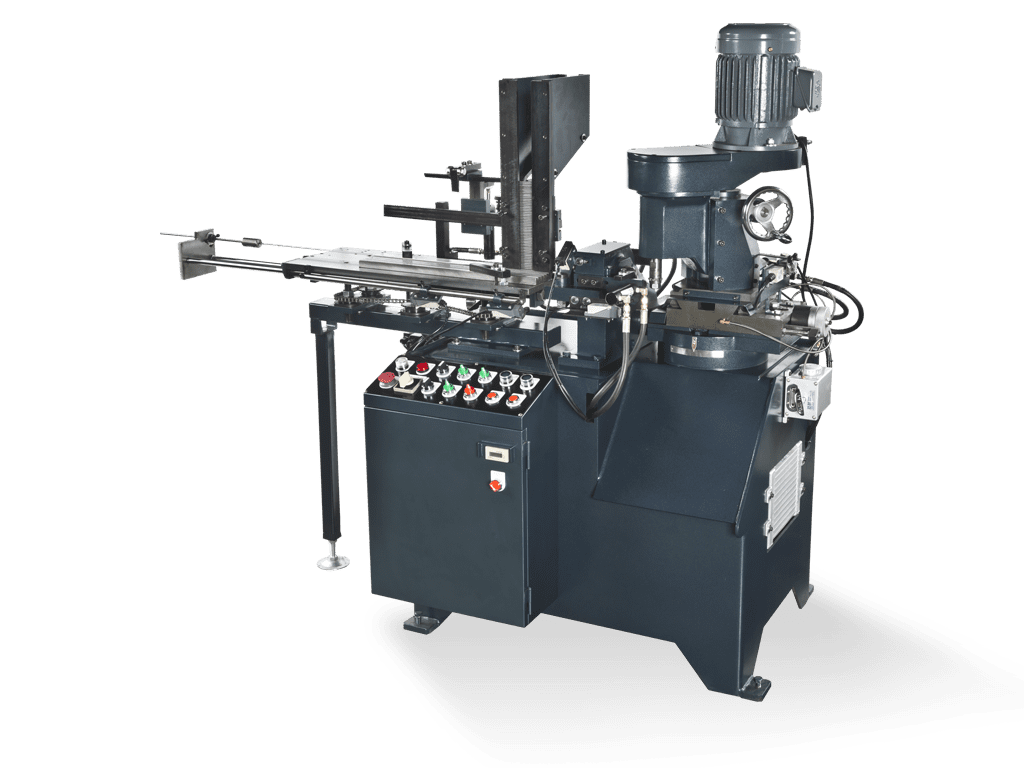

KT-50/50G

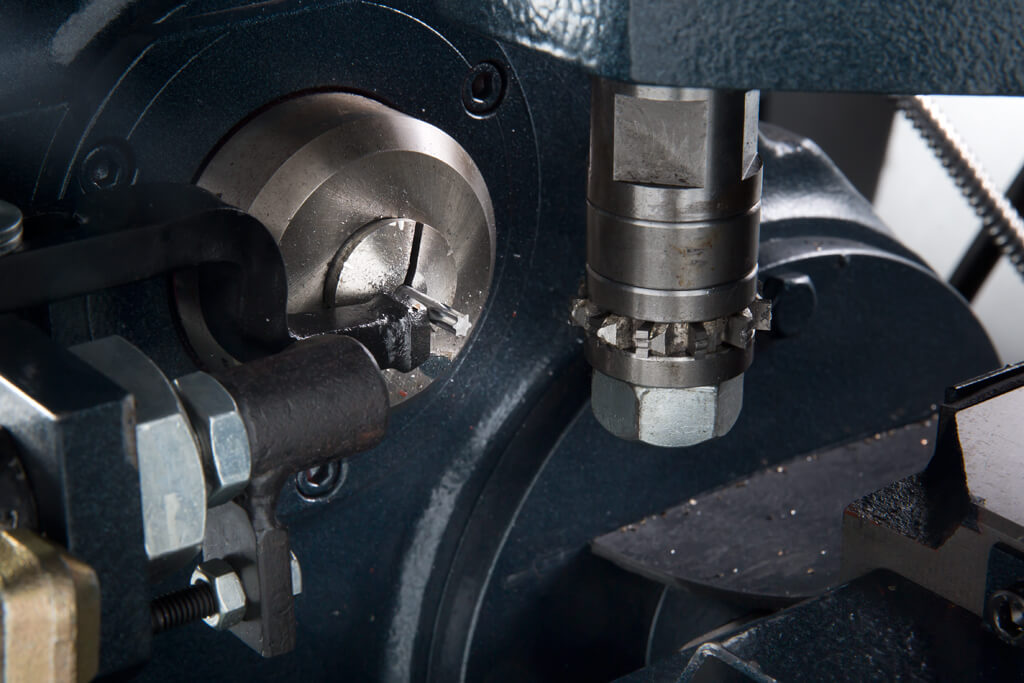

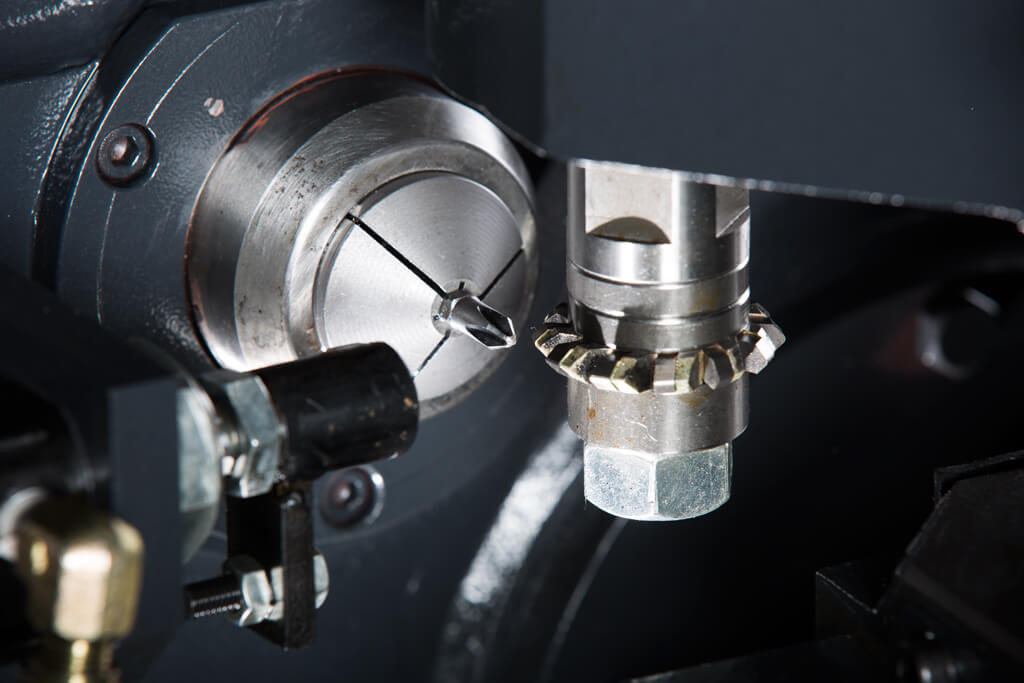

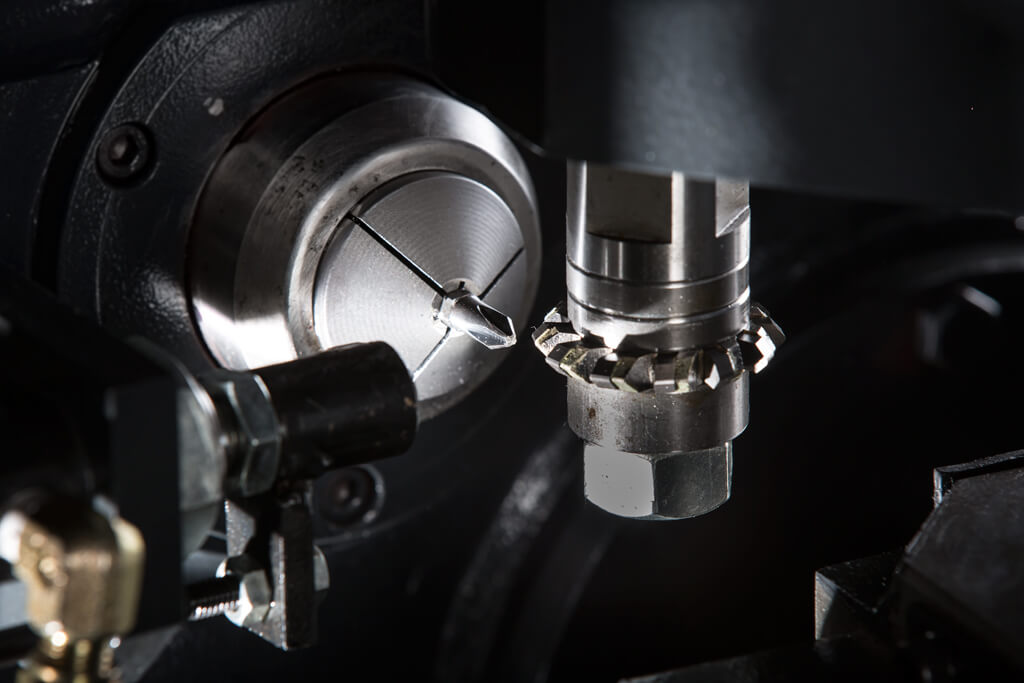

Screwdriver forming machine is the earliest developed model type. By using unique reticle design to calculate the precise milling angle of screwdriver heads to form multi-typed screwdrivers. After improving the design of split disk structure, these machines can spin faster, more precisely, and more stable with low failure rate which can increase the machine utilization rate and prolong life cycle. Single purpose model-milling single specific shape screwdriver head.ex, Phillips/Slotted/Pozi/Torx-single shape only
Specification
Specifications
| KT-30 | KT-30G | KT-50 | KT-50G | KT-80 | KT-80G | |
|---|---|---|---|---|---|---|
| 工作物外徑： | 3 - 10mm | 3 - 10mm | 4 - 12mm | 4 - 12mm | 4 - 15mm | 4 - 15mm |
| Workpiece Length： | 25 - 100mm | 25 - 100mm | 80 - 250mm | 80 - 250mm | 110 - 350mm | 110 - 350mm |
| Material Type： | Hex/ Square/Round | Hex/ Square/Round | Hex/ Square/Round | Hex/ Square/Round | Hex/ Square/Round | Hex/ Square/Round |
| Collet Chuck： | 25 type | 25 type | 25 type | 25 type | 25 type | 25 type |
| Spindle Motor： | 2HP | 2HP | 2HP | 2HP | 3HP | 3HP |
| Hydraulic Motor： | 1HP | 1HP | 1HP | 1HP | 2HP | 2HP |
| Capacity (pce/min.)： | 10 - 25pcs. | 10 - 25pcs. | 8 - 15pcs. | 8 - 15pcs. | 6 - 12pcs. | 6 - 12pcs. |
| Complete Product Type： | PH/SL or PZ/TORX | PH/SL/PZ/TORX | PH/SL or PZ/TORX | PH/SL/PZ/TORX | PH/SL or PZ/TORX | PH/SL or PZ/TORX |
| Machine Size(LxWxH)： | 170x110x155 | 170x110x155 | 170x120x160 | 170x120x160 | 180x120x170 | 180x120x170 |
| Machine Weight： | 480kg | 480kg | 520kg | 520kg | 580kg | 580kg |
