Lathe
Lathe
KT-25B

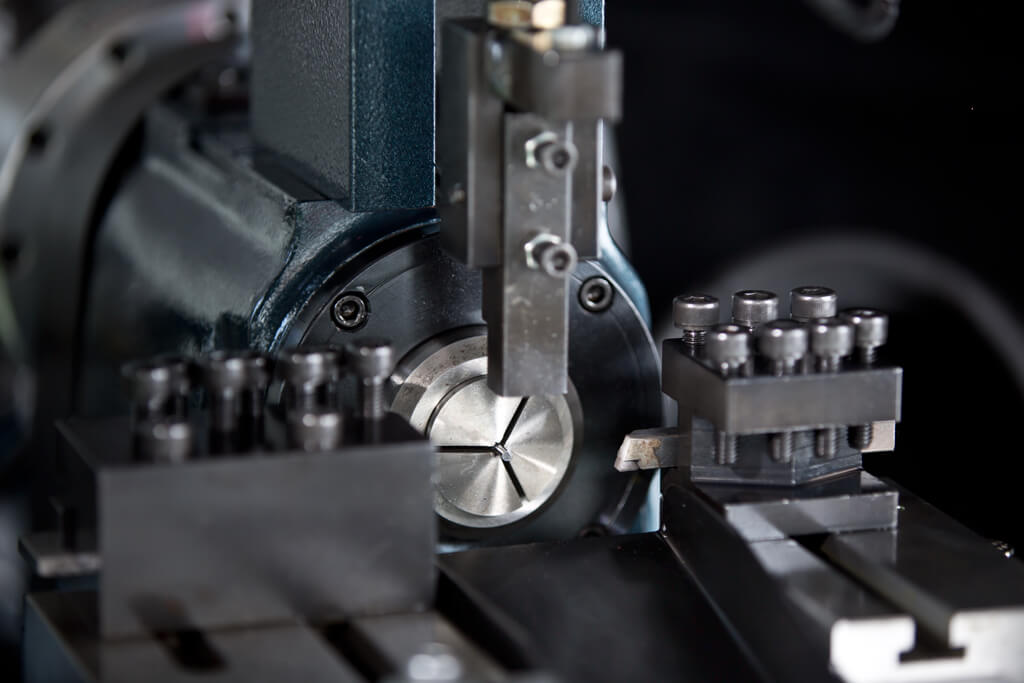

Has the same function as turning machine but focus on workpieces in longer length. Material is pushed forward from back rack to complete the process procedure. This machine is with high spin rotary cylinder so the processing speed and stability are higher. Multi turning function can process synchronize, surfacing and chamfering at the same time. Turning head and grooving will be proceeding during the second process. This model also uses the server motor system, it helps work more stability.

Specification

Specifications

  KT-25B
Workpiece Diameter: 4 - 12mm
Workpiece Length: 110 - 350mm
Material Type: Hex/ Square/Round
Collet Chuck: 25 type
Spindle Motor: 2HP
Hydraulic Motor: 1HP
Capacity (pce/min.): 8 - 15pcs.
Machine Size(LxWxH): 170x110x155
Machine Weight: 450kg
