Products

Self Tapping Screws

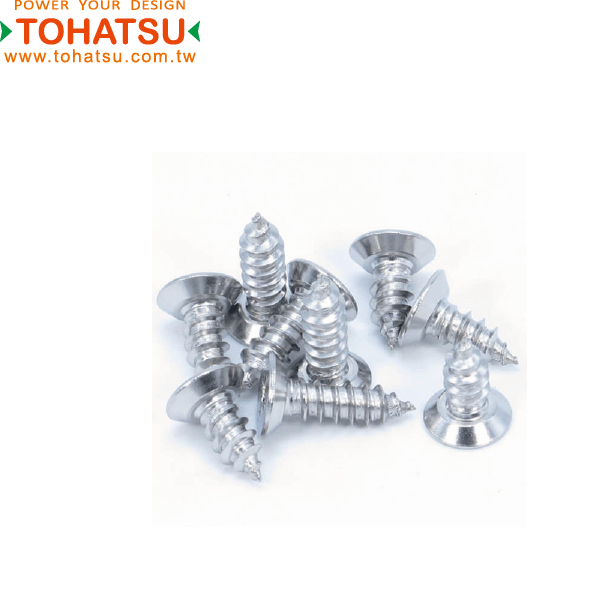

Countersunk head Phillips self-tapping screws (Material: SUS304)
BWPWP

Self-tapping screw is a kind of screw with relatively sharp top, deep thread and large pitch. It is constructed by special electric tools, drilling, tapping, fixing and locking are completed at one time. Self-tapping screws can "tap, drill, squeeze, and press" the corresponding threads on the solidified body on the soft material and rely on its own threads to make them fit closely with each other. Connection of thinner metal sheets.

Specification

品號
Product No.
TYPE
材質+處理
Material + Surface Treatment
螺桿直徑
Screw diameter
螺桿長
Screw length
BWPWP3-10 BWPWP SUS304 3 10
BWPWP3-12 BWPWP SUS304 3 12
BWPWP3-6 BWPWP SUS304 3 6
BWPWP3-8 BWPWP SUS304 3 8
BWPWP3.5-10 BWPWP SUS304 3.5 10
BWPWP3.5-12 BWPWP SUS304 3.5 12
BWPWP3.5-8 BWPWP SUS304 3.5 8
BWPWP4-10 BWPWP SUS304 4 10
BWPWP4-12 BWPWP SUS304 4 12
BWPWP4-16 BWPWP SUS304 4 16
BWPWP5-16 BWPWP SUS304 5 16
