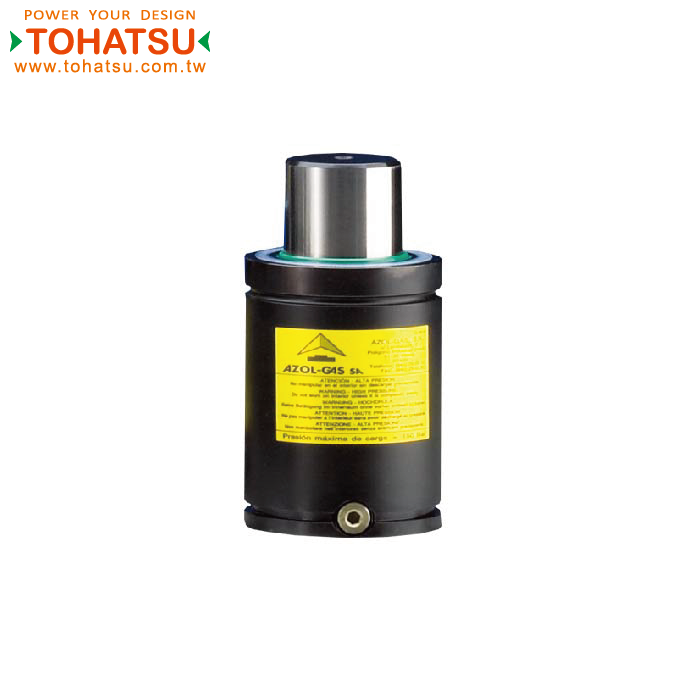

Gas spring (compact height type (initial load 4200kgf))

Nitrogen Aas Spring

Gas spring (compact height type (initial load 4200kgf))

Nitrogen gas spring for mold is a new type of elastic component with high pressure nitrogen as working medium.
It is small in size, large in elasticity, long in stroke, stable in operation, precise in manufacturing, long in service life, flat in elastic curve, does not require preloading, simplifies mold design and manufacture, facilitates mold installation and adjustment, extends mold life, and ensures product quality. stability

Precautions for using nitrogen gas springs
1. Prohibit the use of other gases
2. The maximum stroke must be 90% of the total stroke
3. Do not exceed the maximum speed during use
4. It is forbidden to exceed the set pressure range
5. It is forbidden to exceed the set temperature range

Compact height type: the overall height is the smallest, the force is unchanged, suitable for use in molds with narrow space height

Specification

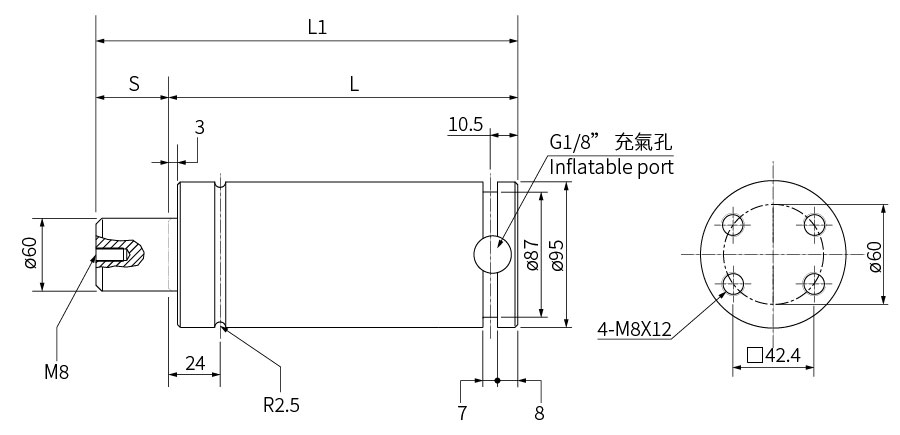

尺寸圖\Dimensions

規格表\Specification Table

品號 Product No.	壓力範圍(bar) Pressure Range	溫度範圍(℃) Temperature Range	最大速度(m/s) Maximum speed	S	L	L1	重量(kg) Weight
CW-4200X16	20~150	0~80	1.6	16	90	74	3.03
CW-4200X19	20~150	0~80	1.6	19	96	77	3.11
CW-4200X25	20~150	0~80	1.6	25	108	83	3.29
CW-4200X32	20~150	0~80	1.6	32	122	90	3.49
CW-4200X38	20~150	0~80	1.6	38	134	96	3.66
CW-4200X50	20~150	0~80	1.6	50	158	108	4
CW-4200X63	20~150	0~80	1.6	63	184	121	4.37
CW-4200X75	20~150	0~80	1.6	75	208	133	4.71
CW-4200X80	20~150	0~80	1.6	80	218	138	4.85
CW-4200X100	20~150	0~80	1.6	100	258	158	5.42
CW-4200X125	20~150	0~80	1.6	125	308	183	6.14
