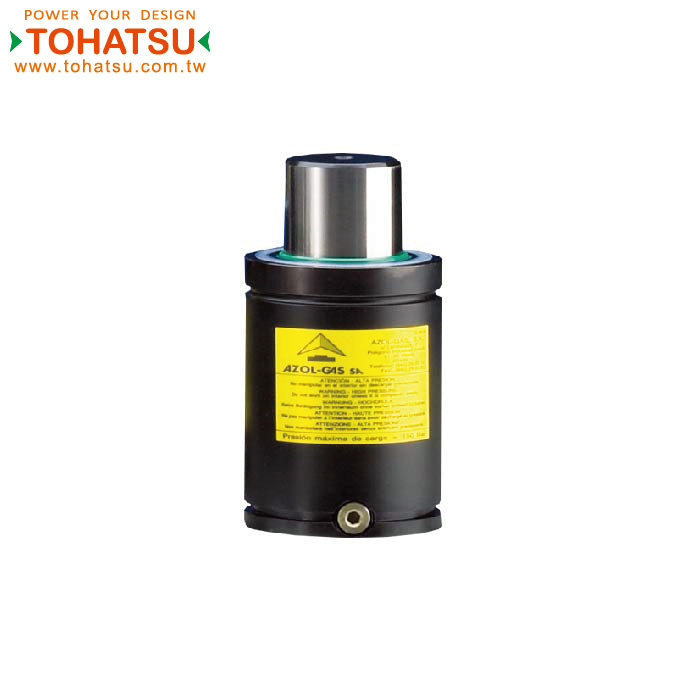

Gas spring (compact height type (initial load 1000kgf))

Nitrogen Aas Spring

Gas spring (compact height type (initial load 1000kgf))

Nitrogen gas spring for mold is a new type of elastic component with high pressure nitrogen as working medium.
It is small in size, large in elasticity, long in stroke, stable in operation, precise in manufacturing, long in service life, flat in elastic curve, does not require preloading, simplifies mold design and manufacture, facilitates mold installation and adjustment, extends mold life, and ensures product quality. stability

Precautions for using nitrogen gas springs
1. Prohibit the use of other gases
2. The maximum stroke must be 90% of the total stroke
3. Do not exceed the maximum speed during use
4. It is forbidden to exceed the set pressure range
5. It is forbidden to exceed the set temperature range

Compact height type: the overall height is the smallest, the force is unchanged, suitable for use in molds with narrow space height

Specification

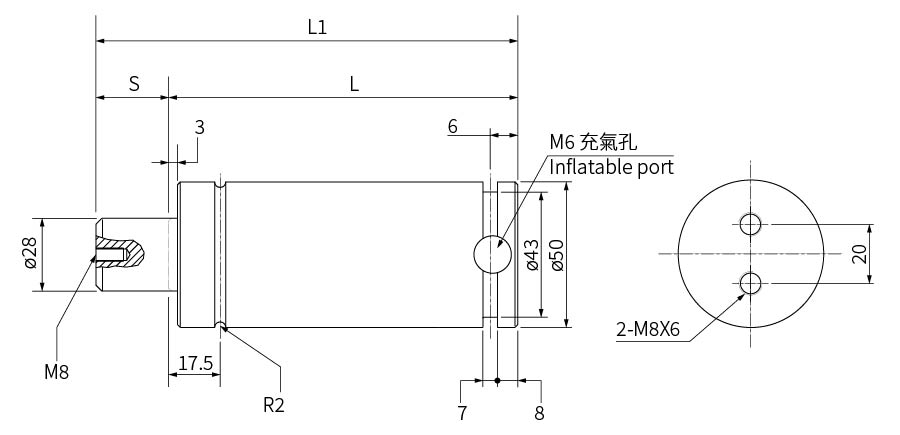

尺寸圖\Dimensions

規格表\Specification Table

品號 Product No.	壓力範圍(bar) Pressure Range	溫度範圍(℃) Temperature Range	最大速度(m/s) Maximum speed	S	L	L1	重量(kg) Weight
CW-1000X10	20~150	0~80	1.6	10	58	48	0.53
CW-1000X13	20~150	0~80	1.6	13	64	51	0.56
CW-1000X16	20~150	0~80	1.6	16	70	54	0.58
CW-1000X19	20~150	0~80	1.6	19	76	57	0.61
CW-1000X25	20~150	0~80	1.6	25	88	63	0.66
CW-1000X32	20~150	0~80	1.6	32	102	70	0.72
CW-1000X38	20~150	0~80	1.6	38	114	76	0.77
CW-1000X50	20~150	0~80	1.6	50	138	88	0.87
CW-1000X63	20~150	0~80	1.6	63	164	101	0.98
CW-1000X75	20~150	0~80	1.6	75	188	113	1.08
CW-1000X80	20~150	0~80	1.6	80	198	118	1.12
CW-1000X100	20~150	0~80	1.6	100	238	138	1.29
CW-1000X125	20~150	0~80	1.6	125	288	163	1.5
