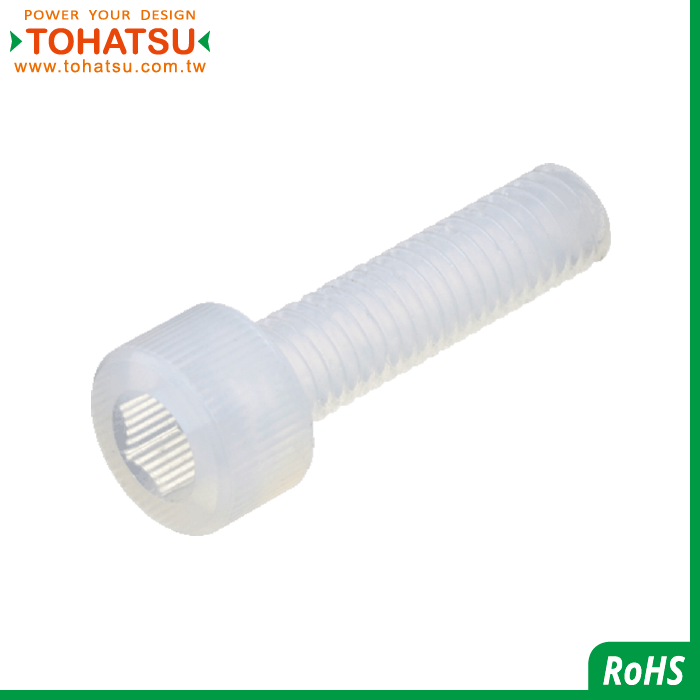

Characteristics of socket head cap screws
1. It is not easy to slip teeth.
2. It can be countersunk in use, that is, the whole nut is sunk into the workpiece, which can keep the surface of the workpiece smooth and beautiful.
3. More assembly occasions, especially narrow occasions, so it is very convenient to assemble and maintain, and it is also convenient to debug.
4. The tools we usually use are adjustable wrenches, screwdrivers and open-end wrenches, etc., and special wrenches must be used to remove the socket head cap screws. Therefore, it is not easy for ordinary people to disassemble, which is also a benefit.
Engineering plastic screws
Features such as insulation, non-magnetic, corrosion resistance, never rust Strength, impact resistance comparable to metal
1. Medical equipment industry (insulation, non-magnetic, environmental protection, anti-interference, make medical equipment safer to use)
2. Wind power industry (isolation and insulation of chassis circuit PCB board)
3. Aerospace industry (insulation and anti-interference on electronic equipment)
4. Office equipment industry (never rusted, beautiful and practical)
5. Petrochemical industry (high temperature resistance, chemical resistance, corrosion resistance, prolong the service life of equipment)
6. Electronics industry (insulation, anti-interference, light weight)
7. Communication industry (insulation, non-magnetic, safety)
8. Shipbuilding industry (acid resistance, alkali resistance, corrosion resistance, prolong service life)
塑膠螺絲材質特性表/Plastic material characteristics table | |||||||||||||
PC | PPS | RENY | PEEK | PVC | PI | PP | PTFE | PFA | PVDF | 陶瓷/CERAMIC | PA | POM | |
輕量性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||||
吸水性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||
耐煮沸水性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||
耐低溫 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||
強韌性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||
抗蠕變性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||
抗老化 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||||
難燃性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||||
抗電性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||
耐磨耗 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||||
高強度 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||||||
耐藥性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||||
耐熱性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ |
品號
Product No.
|
型號
Model number
|
材質+處理
Material + Surface Treatment
|
螺紋規格
Thread Specifications
|
螺桿長
Screw length
|
牙長
Effective thread length
|
---|---|---|---|---|---|
PFACBM410 | PFACB | PFA | M4X0.7 | 10 | 全牙 |
PFACBM412 | PFACB | PFA | M4X0.7 | 12 | 全牙 |
PFACBM415 | PFACB | PFA | M4X0.7 | 15 | 全牙 |
PFACBM420 | PFACB | PFA | M4X0.7 | 20 | 全牙 |
PFACBM425 | PFACB | PFA | M4X0.7 | 25 | 全牙 |
PFACBM430 | PFACB | PFA | M4X0.7 | 30 | 全牙 |
PFACBM510 | PFACB | PFA | M5X0.8 | 10 | 全牙 |
PFACBM512 | PFACB | PFA | M5X0.8 | 12 | 全牙 |
PFACBM515 | PFACB | PFA | M5X0.8 | 15 | 全牙 |
PFACBM520 | PFACB | PFA | M5X0.8 | 20 | 全牙 |
PFACBM525 | PFACB | PFA | M5X0.8 | 25 | 全牙 |
PFACBM530 | PFACB | PFA | M5X0.8 | 30 | 全牙 |
PFACBM610 | PFACB | PFA | M6X1 | 10 | 全牙 |
PFACBM612 | PFACB | PFA | M6X1 | 12 | 全牙 |
PFACBM615 | PFACB | PFA | M6X1 | 15 | 全牙 |
PFACBM620 | PFACB | PFA | M6X1 | 20 | 全牙 |
PFACBM625 | PFACB | PFA | M6X1 | 25 | 全牙 |
PFACBM630 | PFACB | PFA | M6X1 | 30 | 全牙 |
PFACBM810 | PFACB | PFA | M8X1.25 | 10 | 全牙 |
PFACBM812 | PFACB | PFA | M8X1.25 | 12 | 全牙 |
PFACBM815 | PFACB | PFA | M8X1.25 | 15 | 全牙 |
PFACBM820 | PFACB | PFA | M8X1.25 | 20 | 全牙 |
PFACBM825 | PFACB | PFA | M8X1.25 | 25 | 全牙 |
PFACBM830 | PFACB | PFA | M8X1.25 | 30 | 全牙 |
