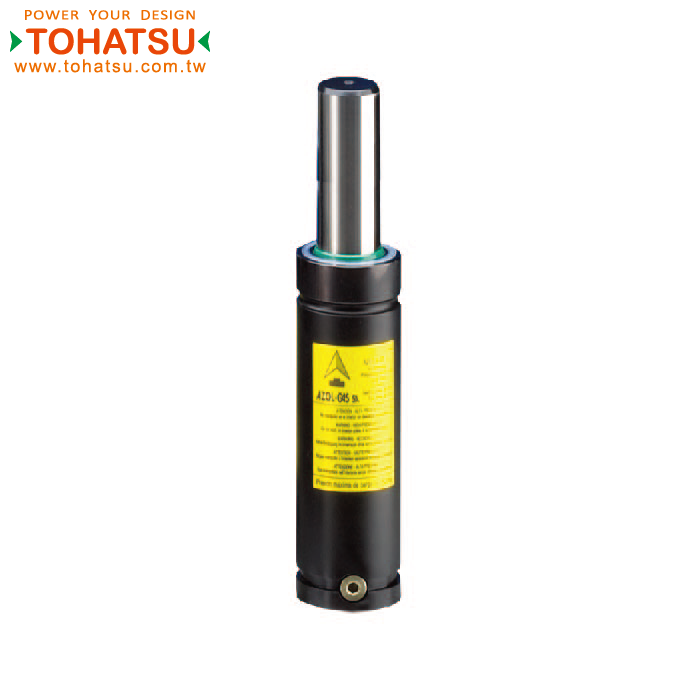

Gas spring (ISO standard (initial load 10000kgf))

Nitrogen Aas Spring

Gas spring (ISO standard (initial load 10000kgf))

Nitrogen gas spring for mold is a new type of elastic component with high pressure nitrogen as working medium.
It is small in size, large in elasticity, long in stroke, stable in operation, precise in manufacturing, long in service life, flat in elastic curve, does not require preloading, simplifies mold design and manufacture, facilitates mold installation and adjustment, extends mold life, and ensures product quality. stability

Precautions for using nitrogen gas springs
1. Prohibit the use of other gases
2. The maximum stroke must be 90% of the total stroke
3. Do not exceed the maximum speed during use
4. It is forbidden to exceed the set pressure range
5. It is forbidden to exceed the set temperature range

Specification

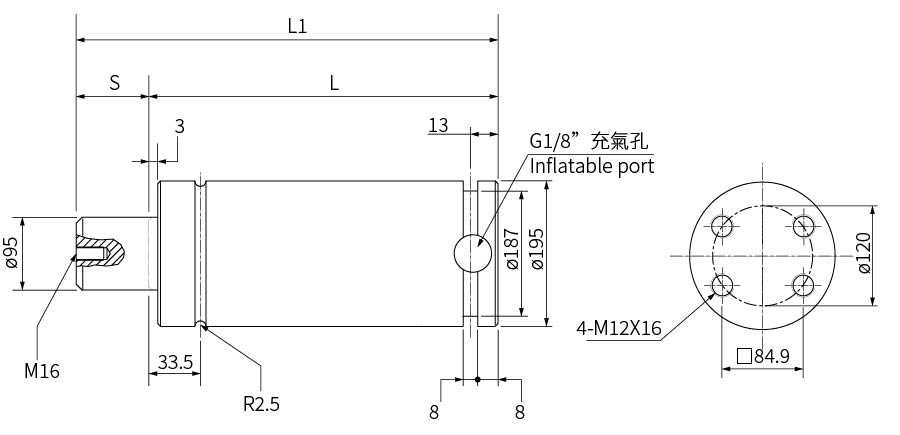

尺寸圖\Dimensions

規格表\Specification Table

品號 Product No.	壓力範圍(bar) Pressure Range	溫度範圍(℃) Temperature Range	最大速度(m/s) Maximum speed	S	L	L1	重量(kg) Weight
AG-10000X25	20~150	0~80	2	25	210	185	31.71
AG-10000X38	20~150	0~80	2	38	236	198	33.04
AG-10000X50	20~150	0~80	2	50	260	210	34.26
AG-10000X63.5	20~150	0~80	2	63.5	287	223.5	35.64
AG-10000X80	20~150	0~80	2	80	320	240	37.32
AG-10000X100	20~150	0~80	2	100	360	260	39.36
AG-10000X125	20~150	0~80	2	125	410	285	41.91
AG-10000X160	20~150	0~80	2	160	480	320	45.48
AG-10000X200	20~150	0~80	2	200	560	360	49.57
AG-10000X250	20~150	0~80	2	250	660	410	54.67
AG-10000X300	20~150	0~80	2	300	760	460	59.77
