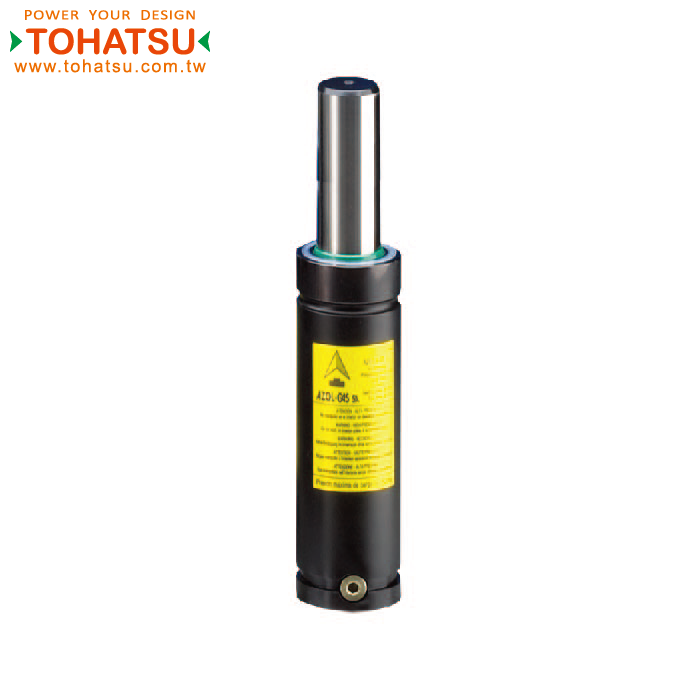

Gas spring (ISO standard (initial load 1500kgf))

Nitrogen Aas Spring

Gas spring (ISO standard (initial load 1500kgf))

Nitrogen gas spring for mold is a new type of elastic component with high pressure nitrogen as working medium.
It is small in size, large in elasticity, long in stroke, stable in operation, precise in manufacturing, long in service life, flat in elastic curve, does not require preloading, simplifies mold design and manufacture, facilitates mold installation and adjustment, extends mold life, and ensures product quality. stability

Precautions for using nitrogen gas springs
1. Prohibit the use of other gases
2. The maximum stroke must be 90% of the total stroke
3. Do not exceed the maximum speed during use
4. It is forbidden to exceed the set pressure range
5. It is forbidden to exceed the set temperature range

Specification

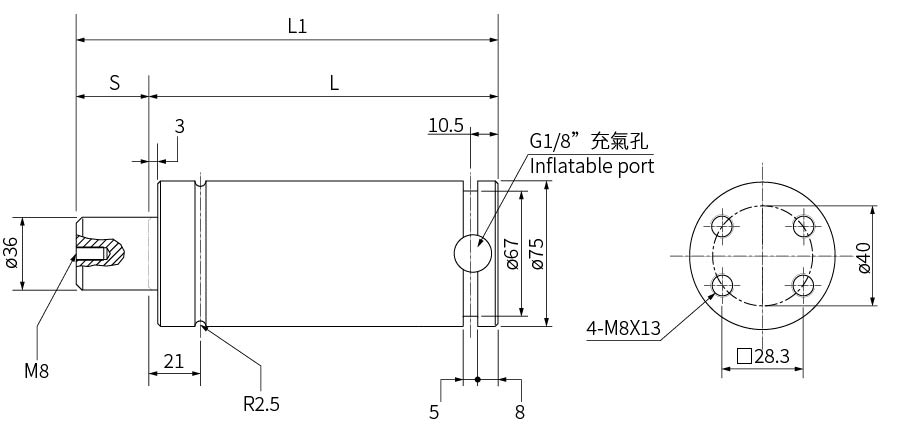

尺寸圖\Dimensions

規格表\Specification Table

品號 Product No.	壓力範圍(bar) Pressure Range	溫度範圍(℃) Temperature Range	最大速度(m/s) Maximum speed	S	L	L1	重量(kg) Weight
AG-1500X13	20~150	0~80	2	13	136	123	2.82
AG-1500X25	20~150	0~80	2	25	160	135	2.99
AG-1500X38	20~150	0~80	2	38	186	148	3.18
AG-1500X50	20~150	0~80	2	50	210	160	3.36
AG-1500X63.5	20~150	0~80	2	63.5	237	173.5	3.56
AG-1500X80	20~150	0~80	2	80	270	190	3.8
AG-1500X100	20~150	0~80	2	100	310	210	4.09
AG-1500X125	20~150	0~80	2	125	360	235	4.46
AG-1500X160	20~150	0~80	2	160	430	270	4.97
AG-1500X175	20~150	0~80	2	175	460	285	5.19
AG-1500X200	20~150	0~80	2	200	510	310	5.56
AG-1500X225	20~150	0~80	2	225	560	335	5.92
AG-1500X250	20~150	0~80	2	250	610	360	6.29
AG-1500X300	20~150	0~80	2	300	710	410	7.02
