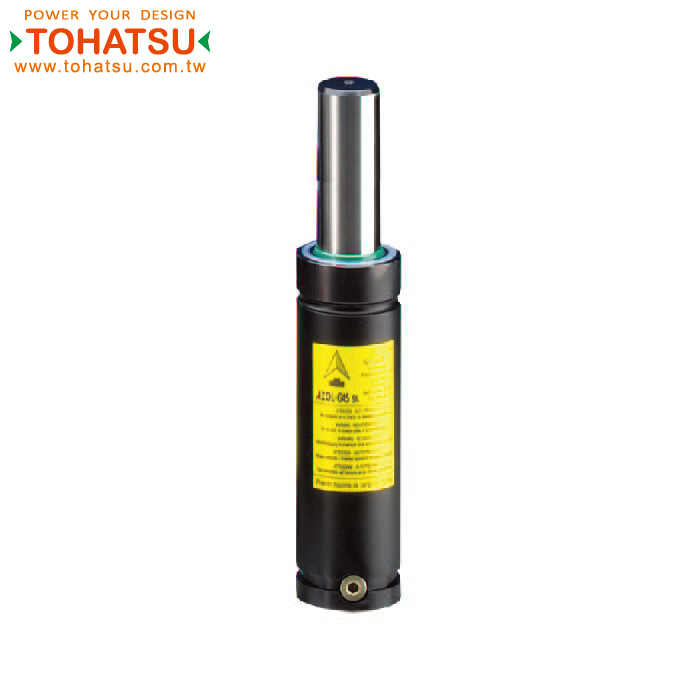

Gas spring (ISO standard (initial load 500kgf))

Nitrogen Aas Spring

Gas spring (ISO standard (initial load 500kgf))

Nitrogen gas spring for mold is a new type of elastic component with high pressure nitrogen as working medium.
It is small in size, large in elasticity, long in stroke, stable in operation, precise in manufacturing, long in service life, flat in elastic curve, does not require preloading, simplifies mold design and manufacture, facilitates mold installation and adjustment, extends mold life, and ensures product quality. stability

Precautions for using nitrogen gas springs
1. Prohibit the use of other gases
2. The maximum stroke must be 90% of the total stroke
3. Do not exceed the maximum speed during use
4. It is forbidden to exceed the set pressure range
5. It is forbidden to exceed the set temperature range

Specification

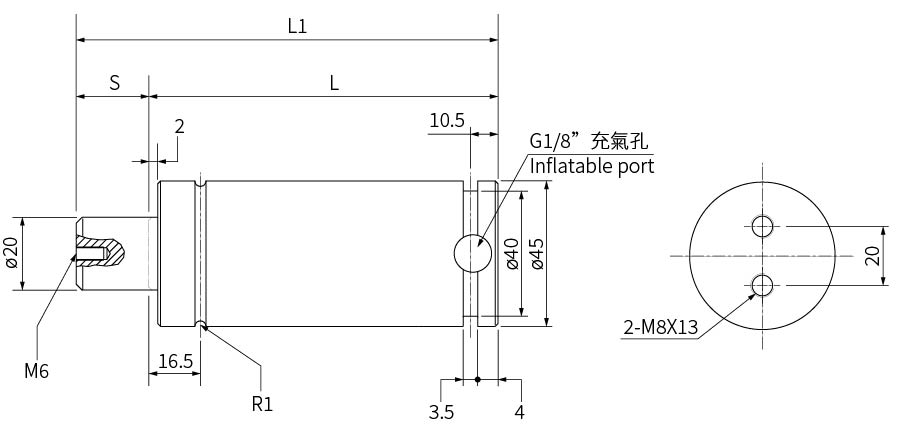

尺寸圖\Dimensions

規格表\Specification Table

品號 Product No.	壓力範圍(bar) Pressure Range	溫度範圍(℃) Temperature Range	最大速度(m/s) Maximum speed	S	L	L1	重量(kg) Weight
AG-500X10	20~150	0~80	1.6	10	105	95	0.83
AG-500X13	20~150	0~80	1.6	13	111	98	0.85
AG-500X16	20~150	0~80	1.6	16	117	101	0.86
AG-500X25	20~150	0~80	1.6	25	135	110	0.91
AG-500X38	20~150	0~80	1.6	38	161	123	0.97
AG-500X50	20~150	0~80	1.6	50	185	135	1.03
AG-500X63.5	20~150	0~80	1.6	63.5	212	148.5	1.1
AG-500X80	20~150	0~80	1.6	80	245	165	1.18
AG-500X100	20~150	0~80	1.6	100	285	185	1.28
AG-500X125	20~150	0~80	1.6	125	335	210	1.41
AG-500X160	20~150	0~80	1.6	160	405	245	1.58
