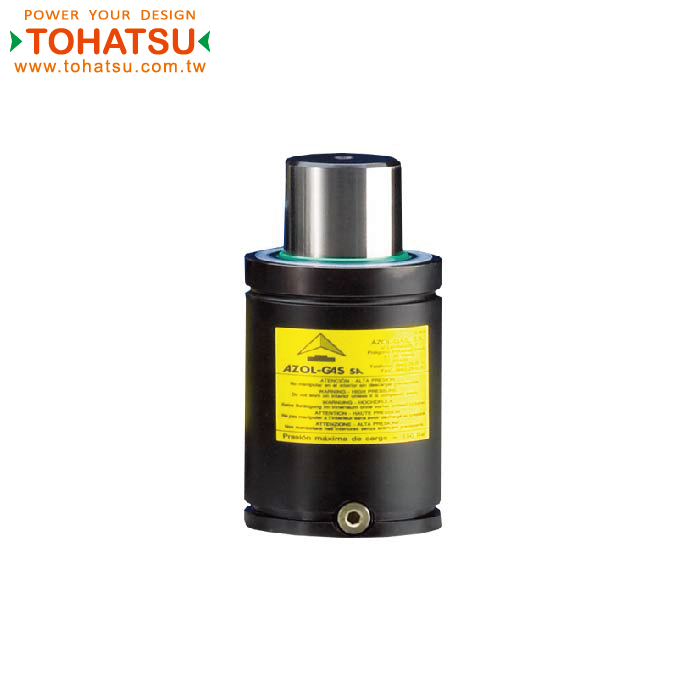

Gas spring (compact height type (initial load 11800kgf))

Nitrogen Aas Spring

Gas spring (compact height type (initial load 11800kgf))

Nitrogen gas spring for mold is a new type of elastic component with high pressure nitrogen as working medium.
It is small in size, large in elasticity, long in stroke, stable in operation, precise in manufacturing, long in service life, flat in elastic curve, does not require preloading, simplifies mold design and manufacture, facilitates mold installation and adjustment, extends mold life, and ensures product quality. stability

Precautions for using nitrogen gas springs
1. Prohibit the use of other gases
2. The maximum stroke must be 90% of the total stroke
3. Do not exceed the maximum speed during use
4. It is forbidden to exceed the set pressure range
5. It is forbidden to exceed the set temperature range

Compact height type: the overall height is the smallest, the force is unchanged, suitable for use in molds with narrow space height

Specification

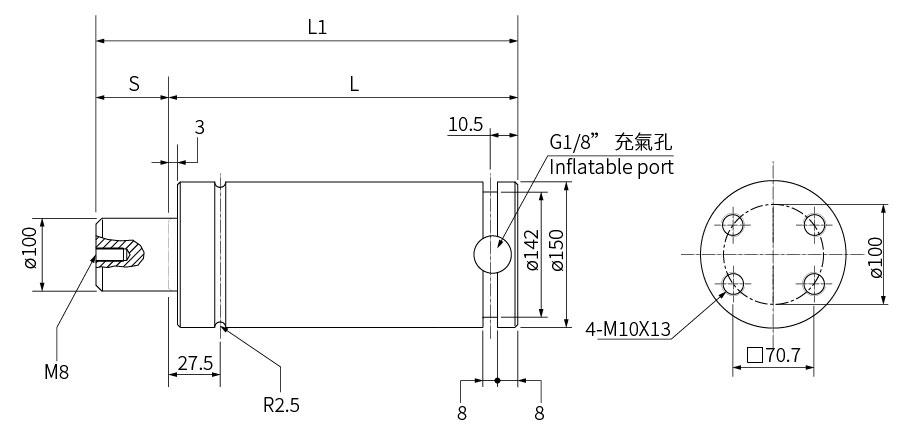

尺寸圖\Dimensions

規格表\Specification Table

品號 Product No.	壓力範圍(bar) Pressure Range	溫度範圍(℃) Temperature Range	最大速度(m/s) Maximum speed	S	L	L1	重量(kg) Weight
CW-11800X19	20~150	0~80	1.6	19	116	97	9.89
CW-11800X25	20~150	0~80	1.6	25	128	103	10.31
CW-11800X32	20~150	0~80	1.6	32	142	110	10.79
CW-11800X38	20~150	0~80	1.6	38	154	116	11.21
CW-11800X50	20~150	0~80	1.6	50	178	128	12.04
CW-11800X63	20~150	0~80	1.6	63	204	141	12.94
CW-11800X75	20~150	0~80	1.6	75	228	153	13.78
CW-11800X80	20~150	0~80	1.6	80	238	158	14.12
CW-11800X100	20~150	0~80	1.6	100	278	178	15.51
CW-11800X125	20~150	0~80	1.6	125	328	203	17.25
