Electric Wire Rope Hoist
60HZ Monorail Electric Wire Rope Hoist - Single Speed

Specification

Model NO. Load
(ton)

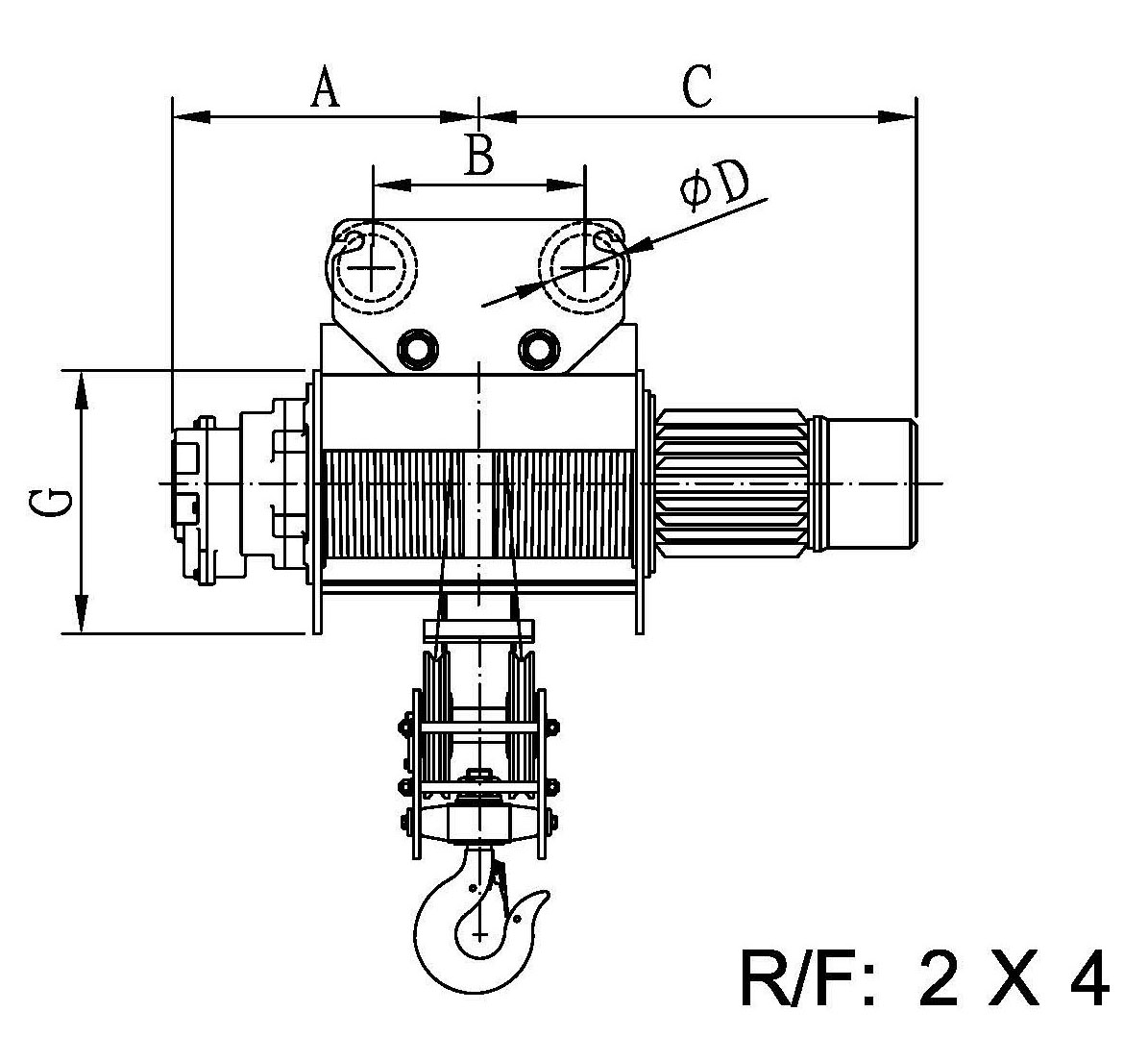

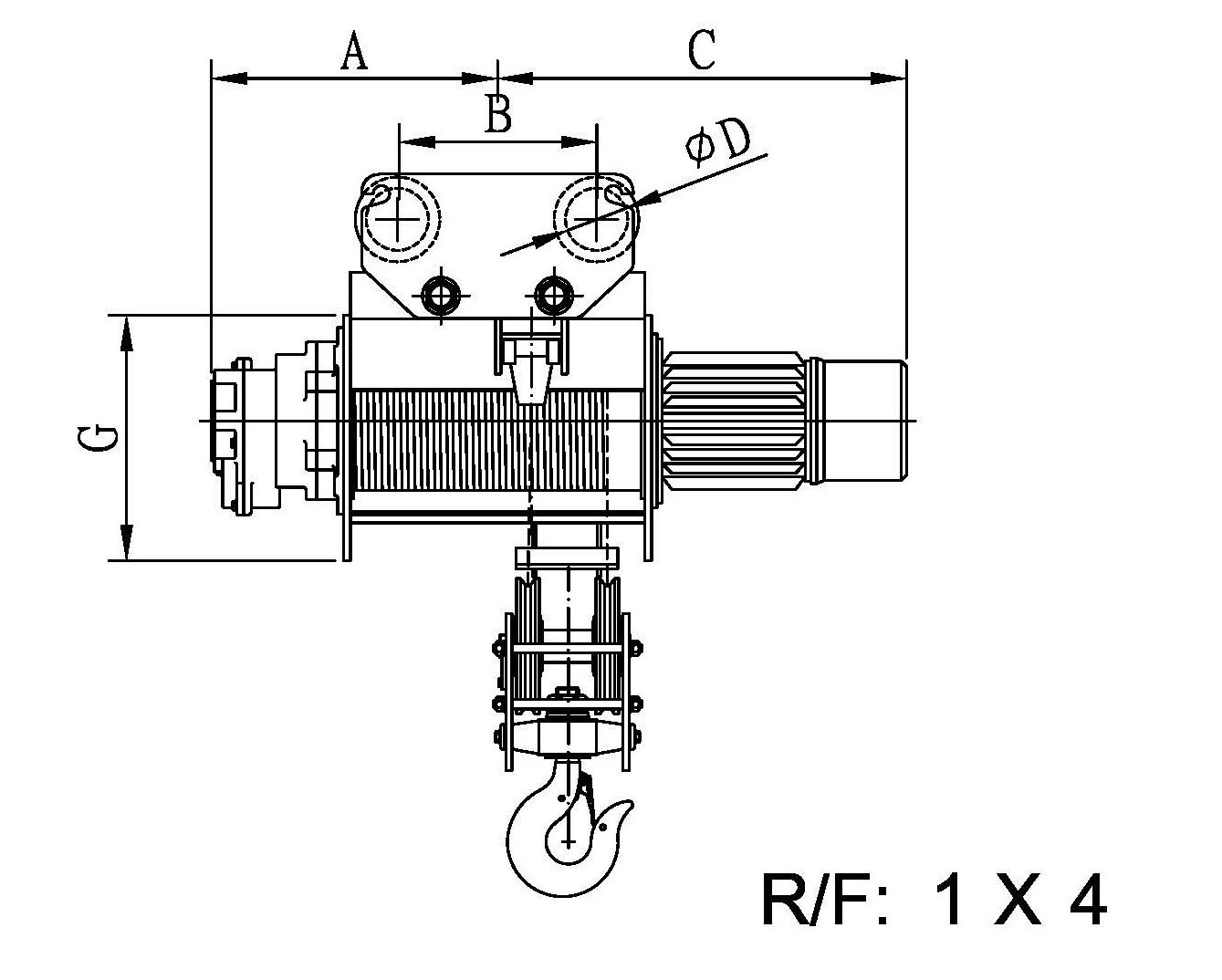

Lift (m) Roping Traversing Wire Rope  Approx. Dimensions (mm)
Motor
(kw)
Speed
(m/min)
Motor
(kw)
Speed
(m/min)
Dia.
(mm)
Falls A B C D E F H
YH1-216M 1 6 1.7 8 0.18 20 8 1×2 290 300 580 68 170 380 880
YH1-219M 9 360 300 610
YH1-21HM 12 1.5*6P 340 300 620
YH2-216M 2 6 3 6.7 0.37 17 10 1×2 385 300 560 87 190 420 1020
YH2-219M 9 430 300 610
YH2-21HM 12 480 300 660
YH3-216M 3 6 4 6.3 0.37 17 12 1×2 413 300 595 110 220 445 1180
YH3-219M 9 456 300 638
YH3-21HM 12 511 300 693
YH5-416M 5 6 7.5 7.2 0.75 17 12 2×4 560 340 920 125 220 450 1280
YH5-419M 9 660 450 1040
YH5-41HM 12 740 450 1150
YH5-416ML 5 6 5.5 5.4 0.75 17 12 2×4 630 450 920 125 220 450 1250
YH5-419ML 9 678 450 1040
YH5-41HML 12 778 450 1150
YH7-416M 7.5 6 8.5 5.5 0.75 17 14 2×4 650 340 960 140 260 510 1400
YH7-419M 9 730 450 1040
YH7-41HM 12 820 450 1120
YH10-416M 10 6 11 5.4 1.5 15 16 2×4 680 450 1010 140 720 550 1550
YH10-419M 9 780 450 1125
YH10-41HM 12 860 450 1220
YH15-419M 15 9 11 3.8 1.5 15 20 2×4 830 550 1220 160 345 600 1650
YH15-41HM 12 950 550 1300
YH20-419M 20 9 18.5 4.5 1.5 15 22 2×4 990 600 1300 190 375 600 1900
YH20-41HM 12 1100 600 1480
YH5-456M 5 6 4 3.6 0.75 17 12 1×4 510 340 690 125 220 500 1250
YH5-459M 9 610 450 750
YH5-45HM 12 695 450 875
YH7-456M 7.5 6 5.5 3.2 0.75 17 14 1×4 510 340 790 140 260 510 1350
YH7-459M 9 614 450 894
YH7-45HM 12 684 450 964
YH10-459M 10 9 7.5 3.6 1.5 15 16 1×4 680 450 958 140 260 550 1500
YH10-45HM 12 787 450 1066
YH15-459M 15 9 8.5 2.7 1.5 15 20 1×4 760 550 1160 160 345 600 1650
YH15-45HM 12 860 550 1216
YH20-459M 20 9 11 2.6 1.5 15 22 1×4 725 600 1095 190 375 650 1900
YH20-45HM 12 822 600 1192
