Specification
| Model NO. | Load (ton) |
Lift (m) |

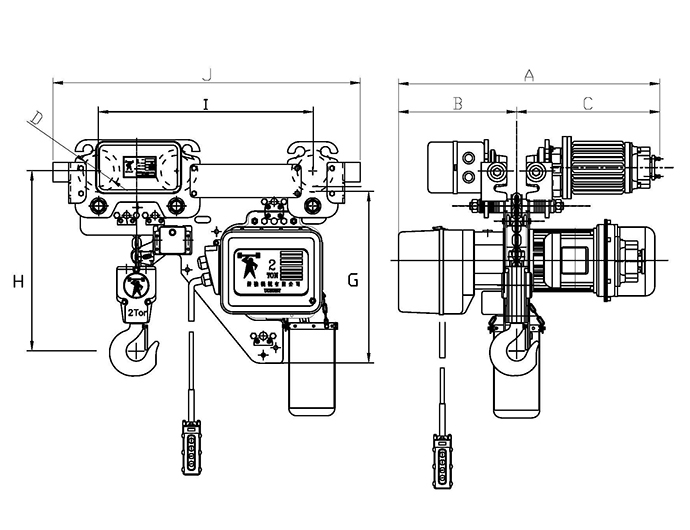

Roping | Traversing | Chain | Approx. Dimensions (mm) | ||||||||||
| Motor (kw) |
Speed (m/min) |
Motor (kw) |
Speed (m/min) |
Dia.ϕ (mm) |
Fall | A | B | C | D | G | H | I | J | |||
| YCH-010HN | 1 | 3 | 1.5 | 7.2 | 0.18 | 22 | 7.1 | 1 | 575 | 275 | 300 | 68 | 580 | 400 | 550 | 850 |
| YCH-020HN | 2 | 3 | 3.75 | 10.6 | 0.37 | 20 | 10 | 1 | 660 | 310 | 350 | 87 | 680 | 500 | 590 | 850 |
| YCH-026HN | 2.6 | 3 | 3.75 | 7.8 | 0.37 | 20 | 11.1 | 2 | 660 | 310 | 350 | 110 | 680 | 560 | 590 | 850 |
| YCH-030HN | 3 | 3 | 3.75 | 5.3 | 0.37 | 20 | 10 | 1*2 | 660 | 310 | 350 | 110 | 680 | 580 | 630 | 850 |
| YCH-020SN | 2 | 3 | 1.5 | 3.6 | 0.37 | 20 | 7.1 | 1*2 | 575 | 275 | 300 | 87 | 580 | 500 | 550 | 850 |
| YCH-030SN | 3 | 3 | 1.5 | 2.4 | 0.37 | 20 | 7.1 | 1*3 | 575 | 275 | 300 | 110 | 580 | 560 | 550 | 850 |
| YCH-050SN | 5 | 3 | 3.75 | 3.9 | 0.75 | 17 | 11.1 | 1*2 | 660 | 310 | 350 | 125 | 680 | 590 | 550 | 900 |
