Electric Chain Hoist
50HZ Electric Chain Hoist

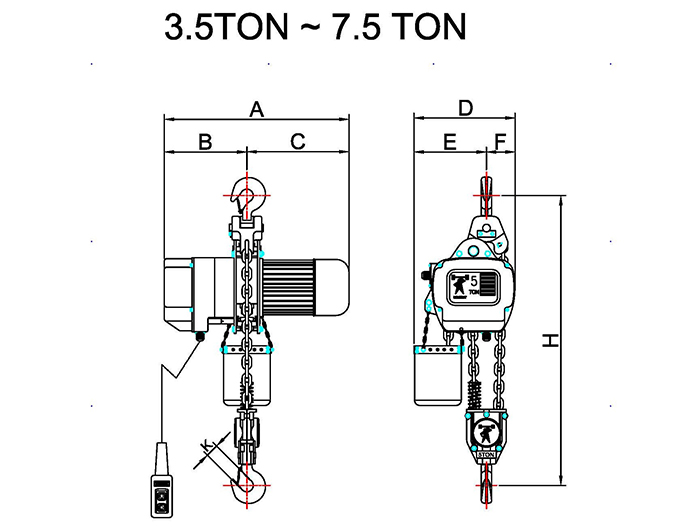

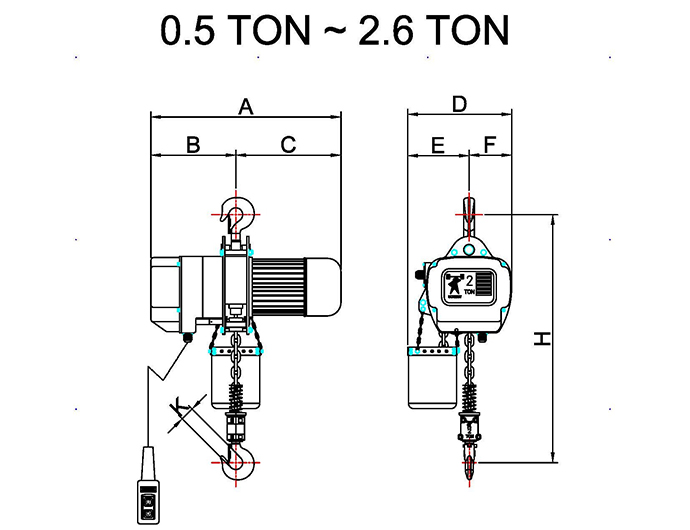

Specification

Model No.  Load
(ton)		 Lift
(m)		 Roping  Chain  Approx. Dimension (mm)
Motor
(kw)		 Speed (m/min) Dia.
(mm)		 Fall A B C D E F H Ｋ
YCH-005H1 0.5 3 1.5 8.3 7.1 1 575 275 300 262 132 130 550 31
YCH-010H1 1 3 1.5 6 7.1 1 575 275 300 262 132 130 550 31
YCH-020H1 2 3 3.75 8.8 10 1 660 310 350 390 240 150 665 37
YCH-026H1 2.6 3 3.75 6.6 11.2 1 660 310 350 390 240 150 710 47
YCH-030H1 3 3 3.75 4.4 10 1 x 2 660 310 350 390 240 150 850 47
YCH-020S1 2 3 1.5 3 7.1 1 x 2 575 275 300 262 132 130 650 37
YCH-030S1 3 3 1.5 2 7.1 1 x 3 575 275 300 262 132 130 700 47
YCH-050S1 5 3 3.75 3.3 11.2 1 x 2 660 310 350 390 240 150 884 52
YCH-075S1 7.5 3 3.75 2.2 11.2 1 x 3 660 383 380 512 328 184 980 62
YCH-100S1 10 3 3.75 x 2  3.3 11.2 2 x 4  768 383 385 900 450 450 1050 73
YCH-005H2 0.5 3 1.5/0.35 8.3/1.4 7.1 1 660 300 360 440 240 200 550 31
YCH-010H2 1 3 1.5/0.35 6/1 7.1 1 660 300 360 440 240 200 550 31
YCH-020H2 2 3 3.75/0.65 8.8/1.47 10 1 710 310 400 390 240 150 665 37
YCH-026H2 2.6 3 3.75/0.65 6.6/1.08 11.2 1 710 310 400 340 240 150 710 37
YCH-030H2 3 3 3.75/0.65 4.4/0.73 10 2 710 310 400 390 240 150 800 47
YCH-020S2 2 3 1.5/0.35 3/.05 7.1 2 660 300 360 440 240 200 650 37
YCH-030S2 3 3 1.5/0.35 2/0.33 7.1 3 660 300 360 440 240 200 780 47
YCH-050S2 5 3 3.75/0.65 3.3/0.55 11.2 2 710 310 400 340 240 150 860 52
YCH-075S2 7.5 3 3.75/0.65 2.2/0.27 11.2 3 710 310 400 512 328 184 980 62
YCH-100S2 10 3 3.75/0.65 3.3/0.55 11.2 2 x 4 818 383 435 986 450 450 1050 73
