Electric Wire Rope Hoist
60HZ Double-Rail Wire Rope Hoist -Single Speed

Specification

Model NO.

Load

(ton)

 Lift

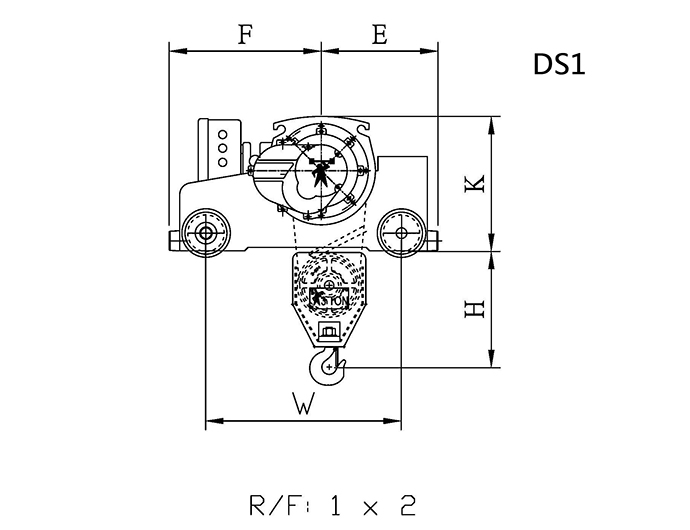

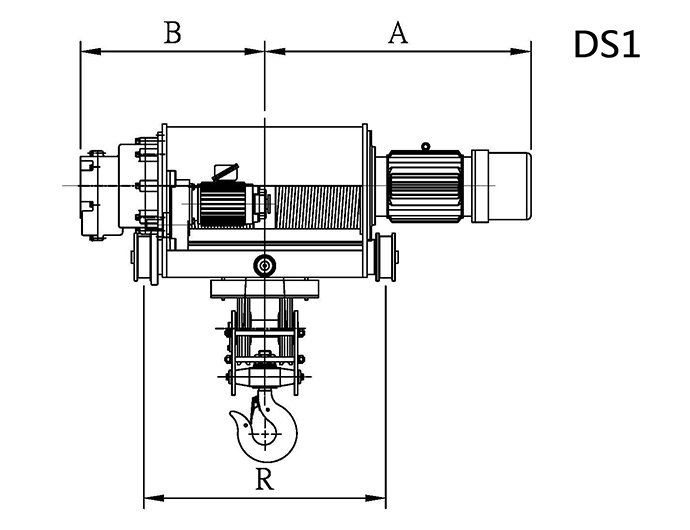

(m)		 Roping Traversing Wire Rope Approx. Dimensions (mm)
Motor
(kw)

Speed

(m/min)

 Motor
(kw)		 Speed
(m/min)		 Dia
(mm)		 Falls A B E H K W R D Q
YW5-416D 5 6 7.5 7.2

0.37*2

 19 12 2×4 580 865 1180 640 700 840 700 135 46
YW5-419D 9 660 950 900
YW5-41HD 12 740 1030 1000
YW5-416DL 5 6 5.5 5.4

0.37*2

 19 12 2×4 630 910 1050 560 700 820 800 135 46
YW5-419DL 9 678 958 1000
YW5-41HDL 12 778 1058 1200
YW7-416D 7.5 6 8.5 5.5 0.37*2 19 14 2×4 645 895 1220 720 700 880 800 135 46
YW7-419D 9 729 979 1000
YW7-41HD 12 824 1074 1150
YW10-419D 10 9 11 5.4 0.75*2 17 16 2×4 786 1150 1400 800 800 980 1050 160 52
YW10-41HD 12 876 1250 1250
YW15-419D 15 9 11 3.8 0.75*2 17 20 2x4 900 1385 1500 900 800 940 1250 160 55
YW15-41HD 12 990 1475 1300
YW15-619D 15 9 11 3.8 0.75*2 17 16 2×6 941 1291 1500 1010 900 1050 1350 160 60
YW15-61HD 12 1088 1440 1650
YW20-419D 20 9 18.5 4.2 0.75*2 17 22 2×4 1055 1303 1500 1000 980 1125 1250 190 60
YW20-41HD 12 1142 1392 1400
YW25-619D 25 9 18.5 3.6 1.5*2 16.5 20 2×6 1099 1349 1830 1100 1100 1400 1350 250 70
YW25-61HD 12 1230 1480 1600
YW30-819D 30 9 18.5 3 1.5*2 16.5 20 2×8 1230 1480 1830 1200 1100 1400 1600 250 70
YW30-81HD 12 1404 1655 1900
YW40-819D 40 9 18.5 2.3 1.5*2 16 22 2×8 1530 1780 1830 1300 1150 1400 1800 280 70
YW40-81HD 12 1730 1980 2300
YW50-T19D 50 9 18.5 1.8 2.2*2 16 22 2×12 1500 1800 2000 1500 1250 1500 2150 330 72
YW50-T1HD 12 1750 2050 2700 72
