Products

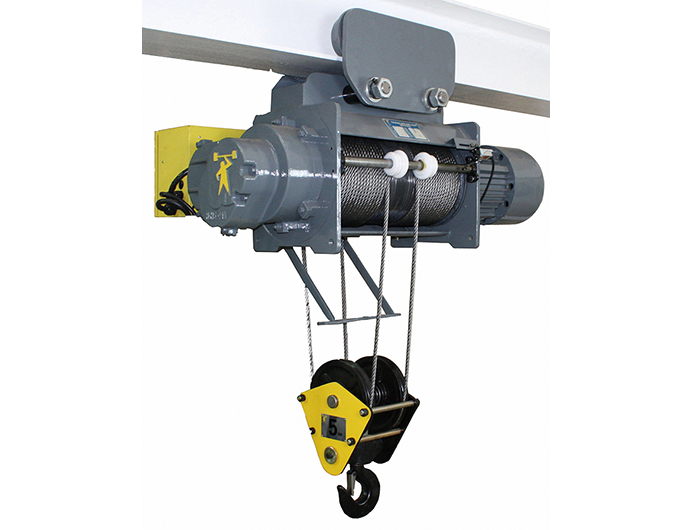

Electric Wire Rope Hoist
60HZ Monorail Electric Wire Rope Hoist - Dual Speed

Specification

Model NO. Load
(ton)
Lift
(m)
Roping  Traversing Wire Rope Approx. Dimensions (mm)
Motor
(kw)
Speed
(m/min)
Motor
(kw)
Speed
(m/min)
Dia.
(mm)

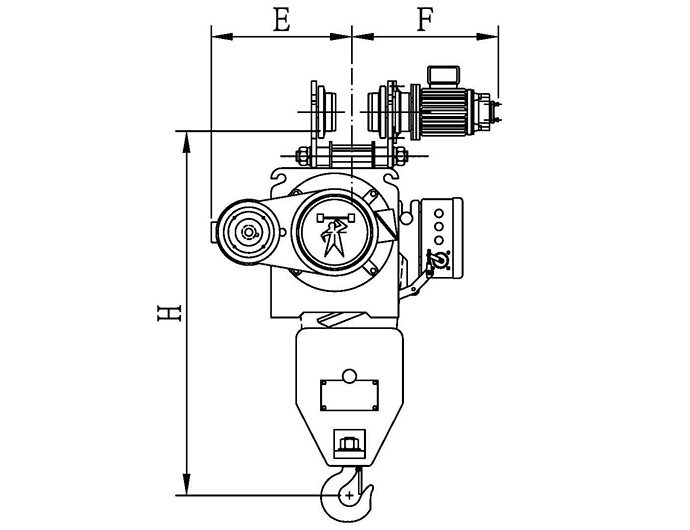

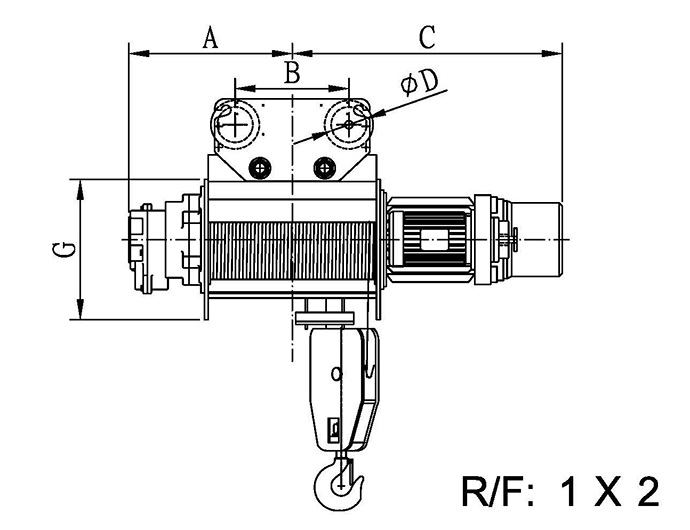

Falls A B C D E F H
YH1-226M 1 6 1.7/0.18 8/0.8 0.18 20 8 1×2 290 300 680 68 390 380 880
YH1-229M 9 360 300 710
YH1-22HM 12 1.5/0.18 340 300 720
YH2-226M 2 6 3/0.37 6.7/0.67 0.37 17 10 1×2 385 300 660 87 405 420 1020
YH2-229M 9 430 300 710
YH2-22HM 12 480 300 760
YH3-226M 3 6 4/0.37 6.3/0.63 0.37 17 12 1×2 413 300 695 110 420 445 1180
YH3-229M 9 456 300 638
YH3-22HM 12 511 300 693
YH5-426M 5 6 7.5/0.75 7.2/0.72 0.75 17 12 2×4 560 340 1020 125 440 500 1280
YH5-429M 9 660 450 1140
YH5-42HM 12 740 450 1250
YH5-426ML 5 6 5.5/0.75 5.4/0.54 0.75 17 12 2×4 630 450 1020 125 440 500 1250
YH5-429ML 9 678 450 1140
YH5-42HML 12 778 450 1250
YH7-426M 7.5 6 8.5/1.5 5.5/0.55 0.75 17 14 2×4 650 340 1060 125 450 600 1450
YH7-429M 9 730 450 1140
YH7-42HM 12 820 450 1220
YH10-426M 10 6 11/1.5 5.4/0.54 1.5 15 16 2×4 680 450 1110 140 450 700 1550
YH10-429M 9 780 450 1225
YH10-42HM 12 860 450 1320
YH15-429HM 15 9 11/1.5 3.8/0.38 1.5 15 20 2×4 830 550 1320 160 450 700 1650
YH15-42HM 12 950 550 1400
YH20-429HM 20 9 18.5/2.2 4.5/0.45 1.5 15 22 2×4 990 600 1400 190 450 700 1900
YH20-42HM 12 1100 600 1580
YH5-4526M 5 6 4/0.37 3.6/0.36 0.75 17 12 1×4 510 340 790 125 430 500 1280
YH5-4529M 9 610 450 850
YH5-452HM 12 695 450 875
YH7-4526M 7.5 6 5.5/0.75 3.2/0.32 0.75 17 14 1×4 505 340 890 140 440 510 1250
YH7-4529M 9 580 450 994
YH7-452HM 12 890 450 1064
YH10-4529M 10 9 7.5/0.75 3.6/0.36 1.5 15 16 1×4 680 450 1058 140 450 550 1480
YH10-452HM 12 787 450 1166
YH15-4529M 15 9 8.5/1.5 2.6/0.26 1.5 15 20 1×4 760 550 1260 160 345 600 1650
YH15-452HM 12 860 550 1316
YH20-4529M 20 9 11/1.5 2.6/0.26 1.5 15 22 1×4 725 600 1195 190 375 650 1900
YH20-452HM 12 822 600 1292
