Electric Wire Rope Hoist

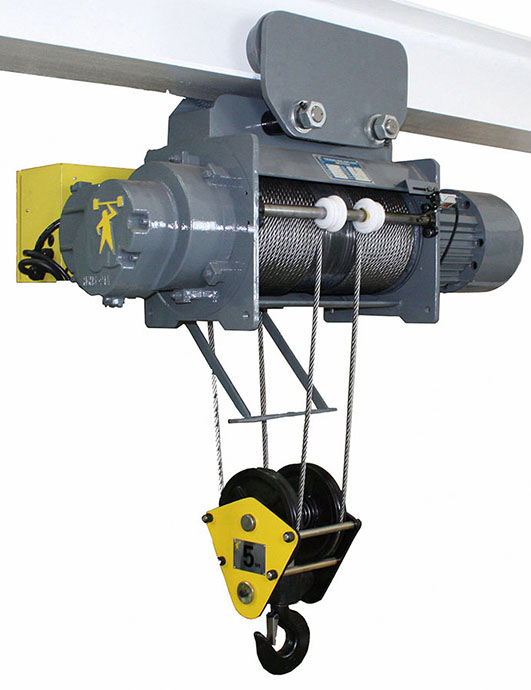

50HZ Monorail Electric Wire Rope Hoist - Single Speed

Specification

Model No. Load
(ton)
Lift
(m)
Roping Traversing Wire Rope  Approx. Dimensions (mm)
Motor
(kw)
Speed
(m/min)
Motor
(kw)
Speed
(m/min)
Dia.
(mm)
Falls A B C D E F H

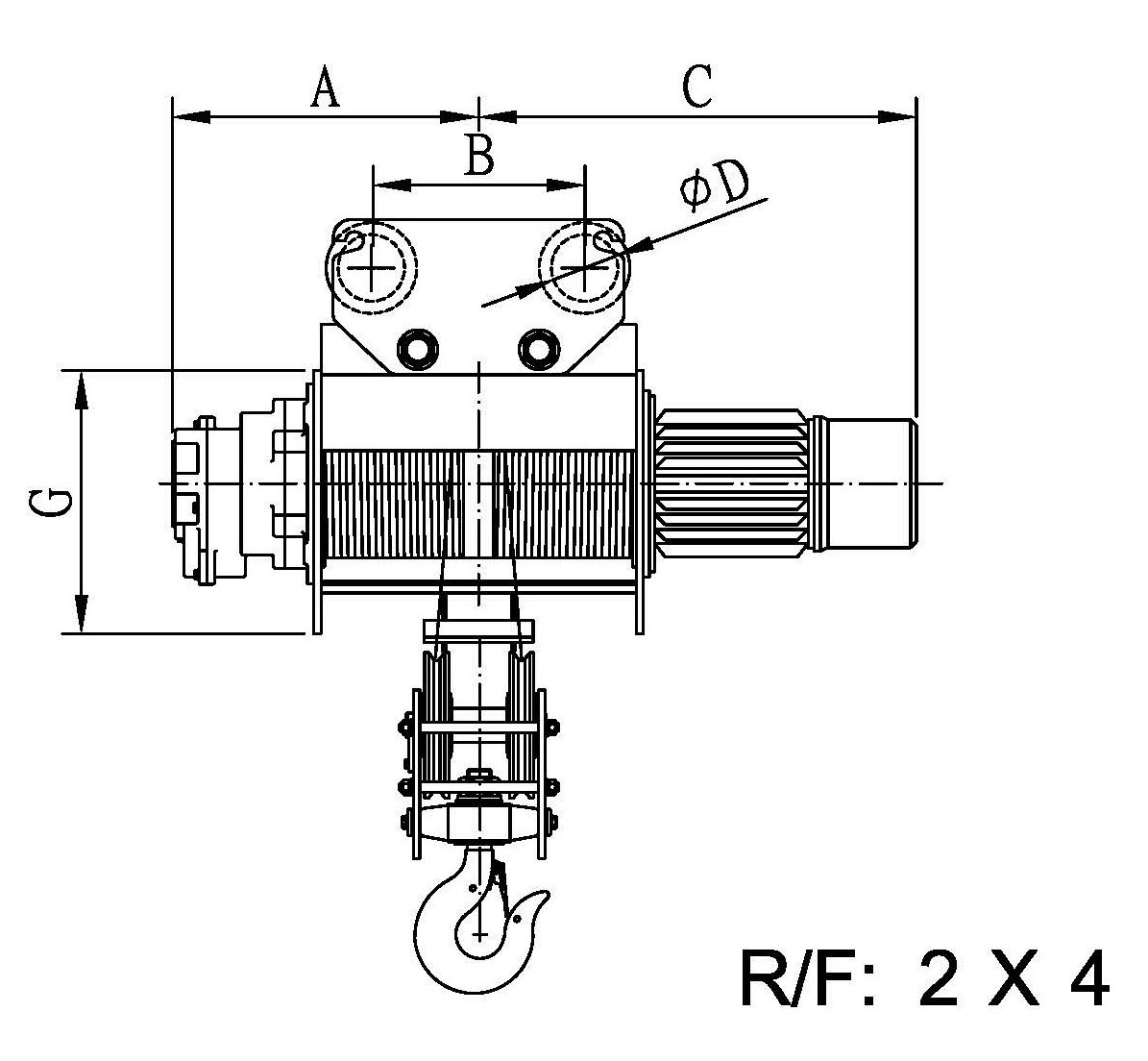

YH1-216M 1 6 1.7 8 0.37 18 8 1×2 315 250 555 68 180 450 850
YH1-219M 9 350 250 600
YH1-21HM 12 425 300 665
YH2-216M 2 6 3 6.7 0.37 18 10 405 250 555 87 200 500 1050
YH2-219M 9 450 250 600
YH2-21HM 12 515 300 665
YH3-216M 3 6 4 6.3 0.37 18 12 427 250 637 110 200 500 1150
YH3-219M 9 472 250 682
YH3-21HM 12 532 300 742
YH5-416M 5 6 5.5 5.4 0.75 18 12 2×4 560 450 890 125 260 550 1350
YH5-419M 9 640 450 950
YH5-41HM 12 720 450 1020
YH7-416M 7.5 6 7.5 5 0.75 18 14 660 450 950 125 280 550 1450
YH7-419M 9 750 450 1040
YH7-41HM 12 850 450 1140
YH10-416M 10 6 8.5 4.3 1.5 18 16 730 450 1020 140 280 600 1550
YH10-419M 9 810 450 1090
YH10-41HM 12 910 450 1200
YH15-419M 15 9 11 3.6 1.5 18 20 925 550 1280 160 345 600 1650
YH15-41HM 12 1025 550 1380
YH20-419M 20 9 18.5 4.5 1.5 18 22 1055 600 1285 190 375 600 1900
YH20-41HM 12 1150 600 1370

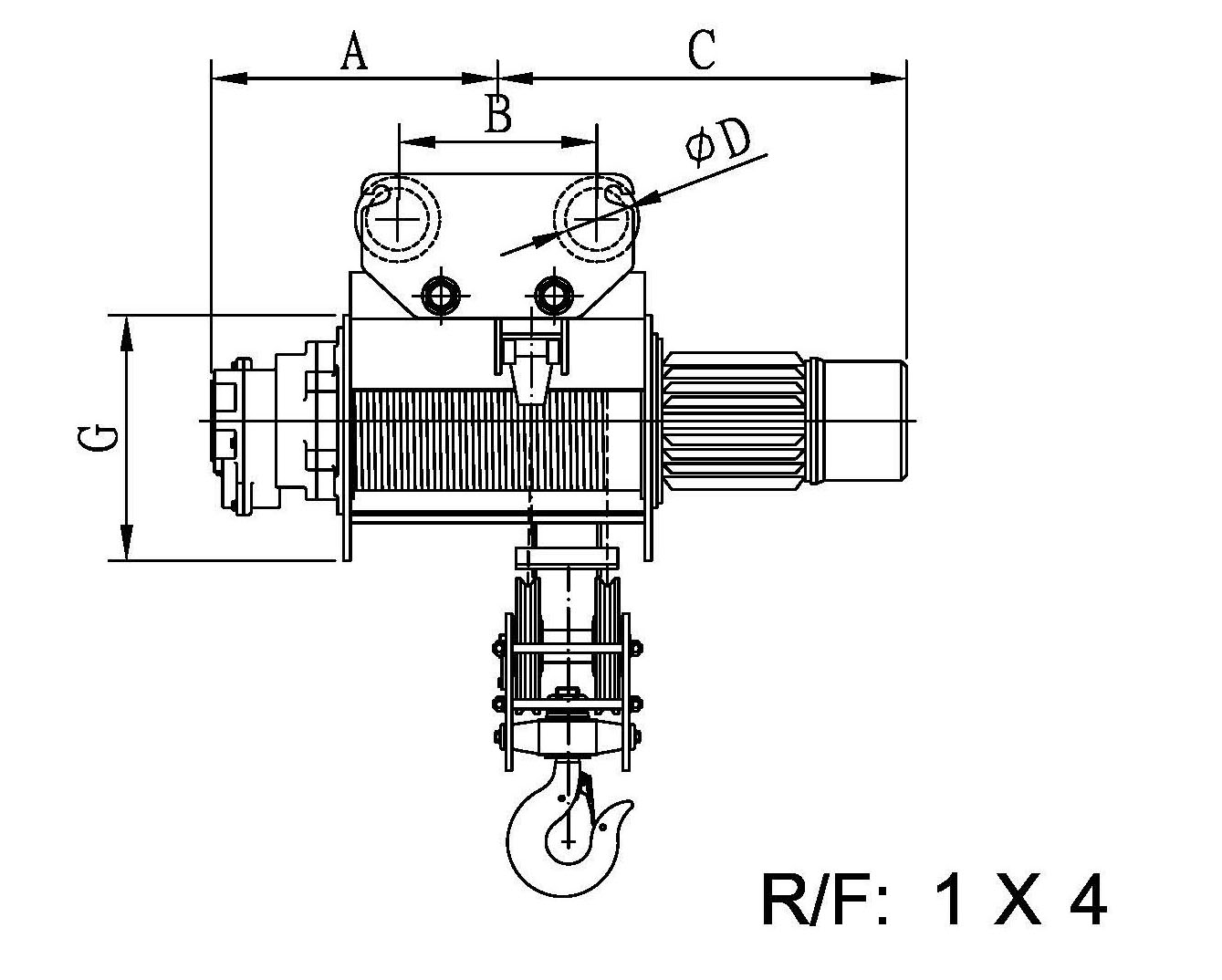

YH5-456M 5 6 4 3.8 0.75 18 12 1×4 540 450 760 125 260 550 1350
YH5-459M 9 620 450 850
YH5-45HM 12 690 450 910
YH7-456M 7.5 6 5.5 3.6 0.75 18 14 595 450 880 125 280 550 1430
YH7-459M 9 640 450 925
YH7-45HM 12 700 450 970
YH10-456M 10 6 7.5 3.6 1.5 18 16 610 450 890 140 280 600 1650
YH10-459M 9 700 450 990
YH10-45HM 12 795 450 1075
YH15-459M 15 9 8.5 2.8 1.5 18 20 790 550 1080 160 345 600 1650
YH15-45HM 12 890 550 1180
YH20-459M 20 9 11 2.8 1.5 18 22 810 600 1160 190 375 650 1900
YH20-45HM 12 910 600 1250
