Specification
Model No. | Load (ton) |
Lift (m) |
Roping | Traversing | Chain | Approx. Dimension (mm) | |||||||||
Motor (kw) |
Speed (m/min) | Motor (kw) |
Speed (m/min) | Dia. (mm) |

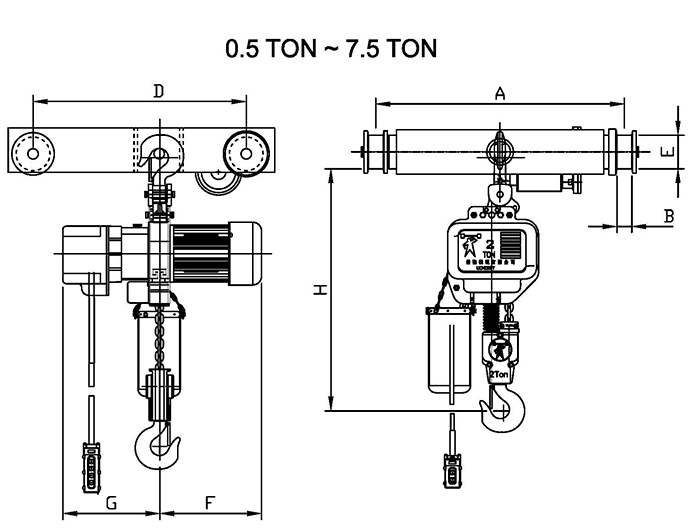

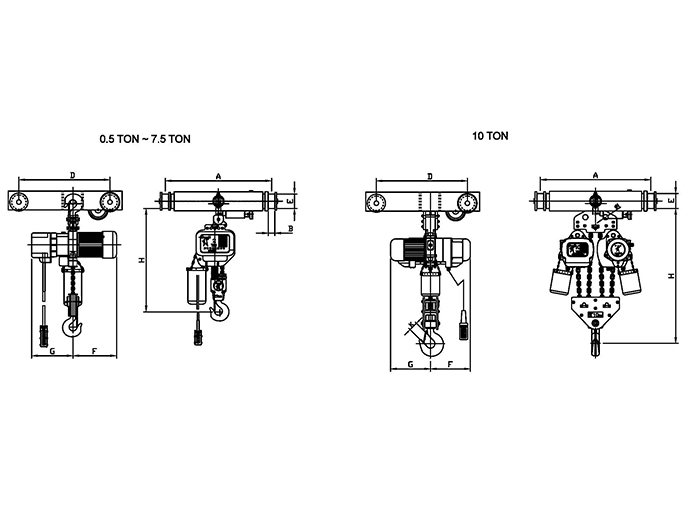

Fall | A | B | H | D | E | F | G | |||
YCH-005H1D | 0.5 | 3 | 1.5 | 8.3 | 0.18 | 18.4 | 7.1 | 1 | 580 | 44 | 693 | 610 | 100 | 300 | 275 |
YCH-010H1D | 1 | 3 | 1.5 | 6 | 0.18 | 18.4 | 7.1 | 1 | 580 | 44 | 693 | 610 | 100 | 300 | 275 |
YCH-020H1D | 2 | 3 | 3.75 | 8.8 | 0.37 | 18.4 | 10 | 1 | 700 | 44 | 763 | 610 | 100 | 350 | 310 |
YCH-026H1D | 2.6 | 3 | 3.75 | 6.6 | 0.37 | 18.4 | 11.2 | 1 | 700 | 44 | 763 | 610 | 100 | 350 | 310 |
YCH-030H1D | 3 | 3 | 3.75 | 4.4 | 0.37 | 16.6 | 10 | 1 x 2 | 800 | 44 | 973 | 620 | 120 | 350 | 310 |
YCH-020S1D | 2 | 3 | 1.5 | 3 | 0.37 | 18.4 | 7.1 | 1 x 2 | 650 | 44 | 763 | 610 | 100 | 300 | 275 |
YCH-030S1D | 3 | 3 | 1.5 | 2 | 0.37 | 18.4 | 7.1 | 1 x 3 | 700 | 44 | 853 | 620 | 120 | 350 | 310 |
YCH-050S1D | 5 | 3 | 3.75 | 3.3 | 0.75 | 16.5 | 11.2 | 1 x 2 | 900 | 48 | 983 | 750 | 135 | 350 | 310 |
YCH-075S1D | 7.5 | 3 | 3.75 | 2.2 | 0.75 | 16.5 | 11.2 | 1 x 3 | 900 | 48 | 1045 | 750 | 135 | 350 | 383 |

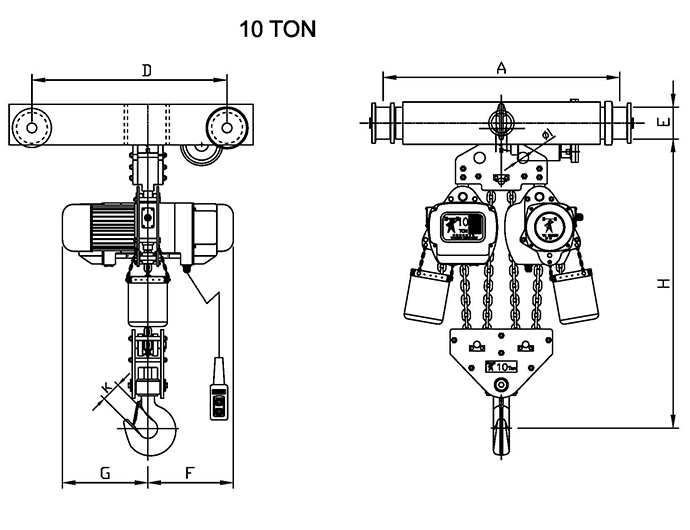

YCH-100S1D | 10 | 3 | 3.75 x 2 | 3.3 | 0.75 | 16 | 11.2 | 2 x 4 | 1300 | 52 | 1115 | 750 | 160 | 385 | 383 |
YCH-005H2D | 0.5 | 3 | 1.5/0.35 | 8.3/1.4 | 0.18 | 18 | 7.1 | 1 | 700 | 44 | 693 | 610 | 100 | 360 | 300 |
YCH-010H2D | 1 | 3 | 1.5/0.35 | 6/1 | 0.18 | 18 | 7.1 | 1 | 700 | 44 | 693 | 610 | 100 | 360 | 300 |
YCH-020H2D | 2 | 3 | 3.75/0.65 | 8.8/1.47 | 0.37 | 17.2 | 10 | 1 | 700 | 44 | 763 | 610 | 100 | 400 | 310 |
YCH-026H2D | 2.6 | 3 | 3.75/0.65 | 6.6/1.08 | 0.37 | 18.4 | 11.2 | 1 | 700 | 44 | 763 | 610 | 100 | 360 | 360 |
YCH-030H2D | 3 | 3 | 3.75/0.65 | 4.4/0.73 | 0.37 | 16.5 | 10 | 2 | 800 | 44 | 973 | 620 | 120 | 400 | 310 |
YCH-020S2D | 2 | 3 | 1.5/0.35 | 3/.05 | 0.37 | 18.4 | 7.1 | 2 | 700 | 44 | 763 | 610 | 100 | 360 | 300 |
YCH-030S2D | 3 | 3 | 1.5/0.35 | 2/0.33 | 0.37 | 18.4 | 7.1 | 3 | 800 | 44 | 853 | 620 | 120 | 400 | 310 |
YCH-050S2D | 5 | 3 | 3.75/0.65 | 3.3/0.55 | 0.75 | 16.5 | 11.2 | 2 | 900 | 48 | 983 | 750 | 135 | 400 | 310 |
YCH-075S2D | 7.5 | 3 | 3.75/0.65 | 2.2/0.27 | 0.75 | 16.6 | 11.2 | 3 | 900 | 48 | 1045 | 750 | 135 | 400 | 310 |
YCH-100S2D | 10 | 3 | 3.75/0.65 | 3.3/0.55 | 0.75 | 16 | 11.2 | 2 x 4 | 1300 | 52 | 1115 | 750 | 160 | 435 | 383 |
