Specification
Model No. | Load(ton) | Motor | Speed ( m/min) |

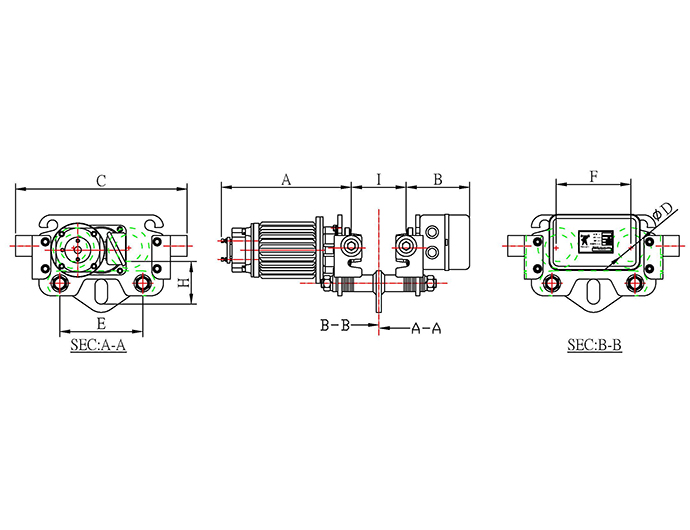

Approx. Dimension (mm) | ||||||||
(KW) | Polo Change | A | B | C | E | F | D | H | I | |||
YM-10H1 | 0.5~1 | 0.18 | 4P | 18 | 272 | 162 | 367 | - | 133 | 68 | 51 | 75~125 |
YM-20H1 | 2 | 0.37 | 4P | 17.2 | 275 | 166 | 387 | - | 153 | 87 | 50 | 75~125 |
YM-30H1 | 2.6~3 | 0.37 | 4P | 16.6 | 282 | 168 | 447 | - | 184 | 110 | 55 | 125~150 |
YM-50H1 | 5 | 0.75 | 4P | 16.6 | 438 | 175 | 420 | 270 | 230 | 125 | 98 | 125~150 |
YM-75H1 | 7.5 | 0.75 | 4P | 16.6 | 438 | 175 | 420 | 270 | 230 | 125 | 98 | 150~200 |
YM-100H1 | 10 | 0.75 | 4P | 16 | 488 | 180 | 500 | 270 | 230 | 140 | 98 | 150~200 |
