YU CHIANG MACHINERY CO., LTD.
Products
Specification
Model NO. | Load (ton) |

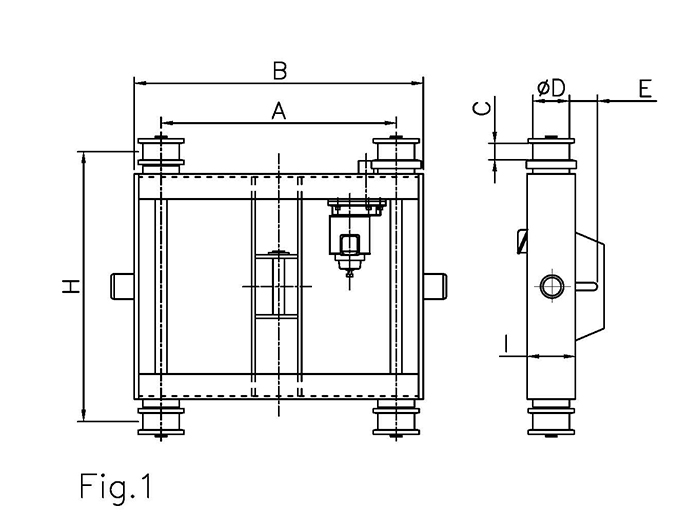

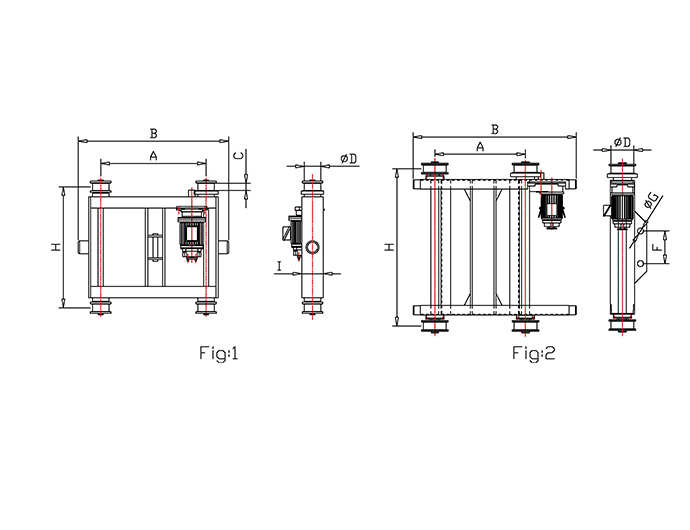

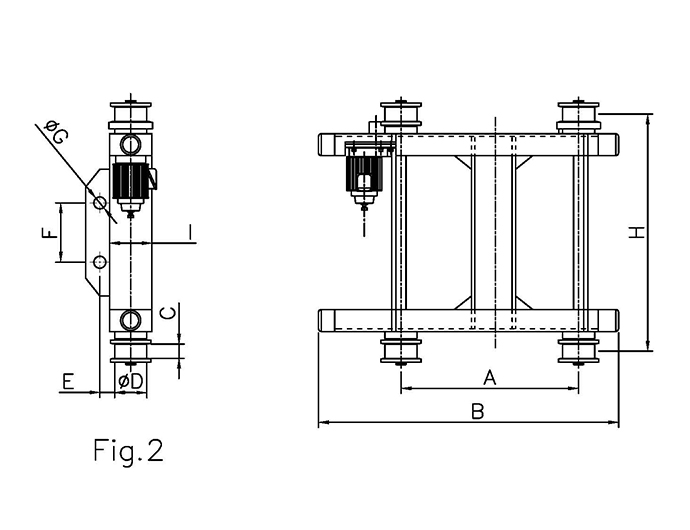

Motor | Speed | Approx. Dimensions (mm) | |||||||||
(kw) | Pole Change | ( m/min) | A | B | C | D | E | F | G | H | I | ||
YD-10H1 | 0.5~1 | 0.18 | 4P | 19.5 | 610 | 750 | 44 | 100 | 63 | - | - | 700 | 125 |
YD-20H1 | 2 | 0.37 | 4P | 19.5 | 610 | 750 | 44 | 100 | 63 | - | - | 700 | 125 |
YD-30H1 | 2.6~3 | 0.37 | 4P | 19.5 | 620 | 800 | 44 | 120 | 73 | - | - | 800 | 125 |
YD-50H1 | 5 | 0.75 | 4P | 15.8 | 800 | 1000 | 48 | 135 | 83 | - | - | 900 | 180 |
YD-75H1 | 7.5 | 0.75 | 4P | 15.8 | 750 | 1230 | 48 | 135 | 65 | 270 | 46 | 900 | 200 |
YD-100H1 | 10 | 0.75 | 4P | 16.6 | 750 | 1230 | 52 | 160 | 65 | 270 | 50 | 1300 | 200 |
