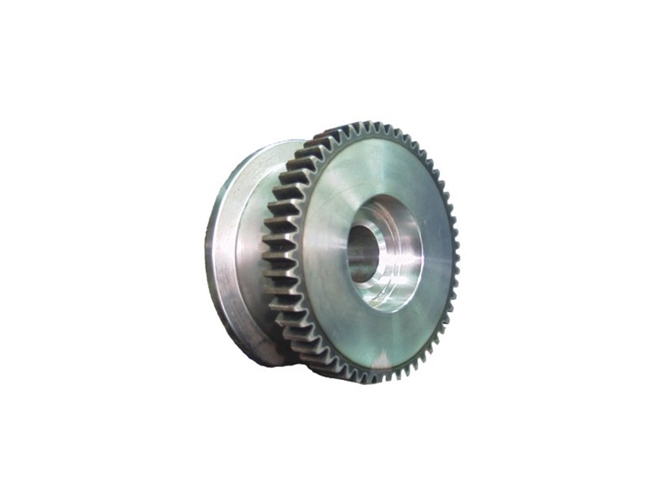

Specification

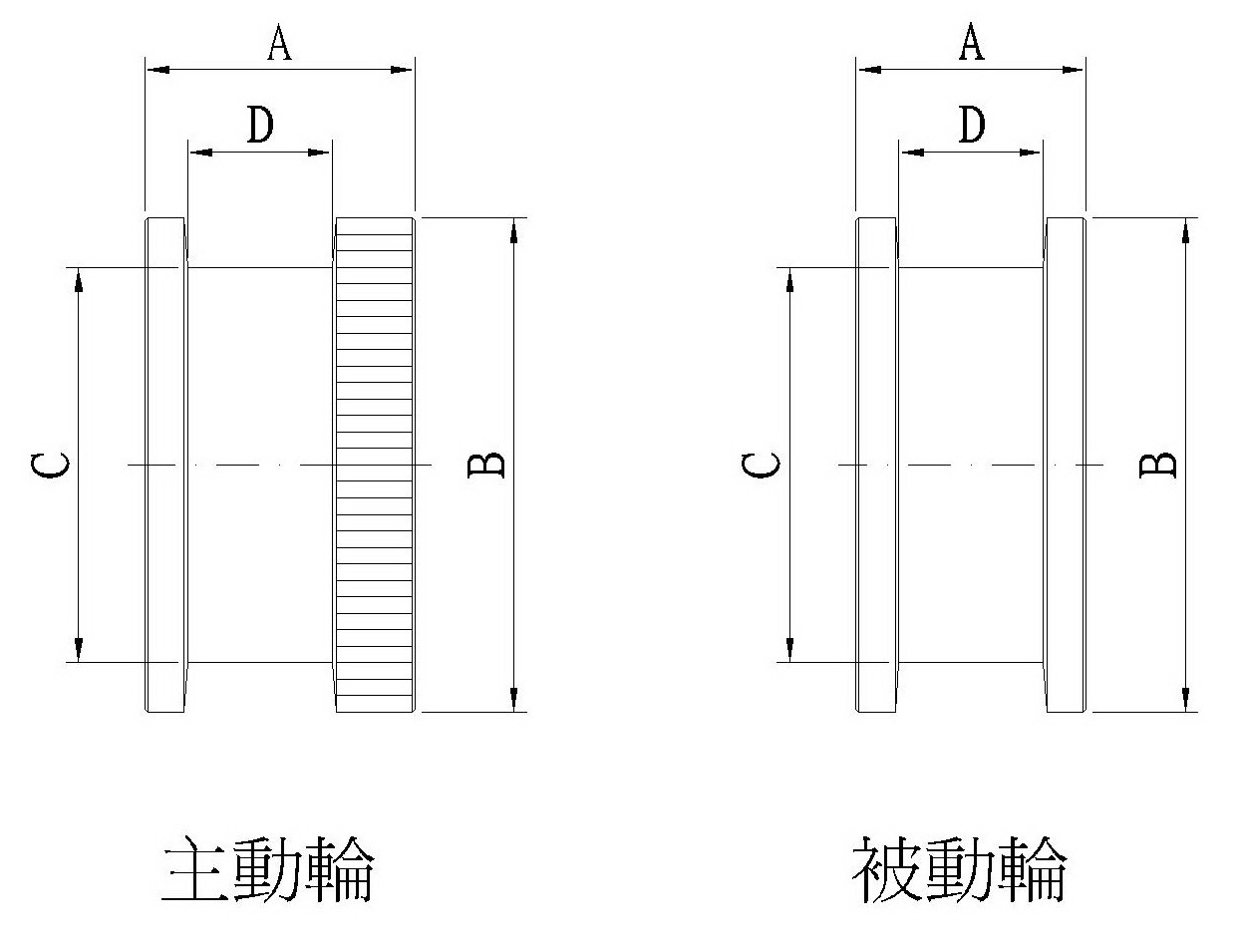

| Model No. | SPEC | MODULS | PITCH | Approx. Dimension (mm) | SHAFT DOMETER |
BEARING | |||
| A | B | C | D | ||||||
| DW-13 | 2 TON | M3 | 53T | 80 | Φ165 | Φ135 | 44 | Φ30 | 6306.Z |
| IW-13 | - | - | 68 | ||||||
| DW-16 | 3 TON | M3 | 61T | 90 | Φ189 | Φ160 | 50 | Φ35 | 6307.Z |
| IW-16 | - | - | 78 | ||||||
| DW-22 | 5 TON | M3.5 | 72T | 106 | Φ 260 | Φ 220 | 58 | Φ 40 | 6308.Z |
| IW-22 | - | - | 86 | ||||||
| DW-28 | 10 TON | M4 | 78T | 125 | Φ 320 | Φ 285 | 68 | Φ 55 | 6311.Z |
| IW-28 | - | - | 125 | ||||||
| DW-33 | 15 TON | M4 | 72T | 136 | Φ 368 | Φ 330 | 72 | Φ 60 | 6312.Z |
| IW-33 | - | - | 136 | ||||||
| DW-38 | 20 TON | M5 | 84T | 140 | Φ 430 | Φ 388 | 75 | Φ 70 | 22214 |
| IW-38 | - | - | 115 | ||||||
| DW-38 | 25 TON | M5 | 84 T | 140 | Φ 430 | Φ 388 | 75 | Φ 70 | 22214 |
| IW-38 | - | - | 115 | ||||||
| DW-48 | 30 TON | M6 | 86T | 147 | Φ 528 | Φ 480 | 75 | Φ 80 | 22216 |
