YU CHIANG MACHINERY CO., LTD.
Products
Specification
Model NO. | Load (ton) | Lift (m) |

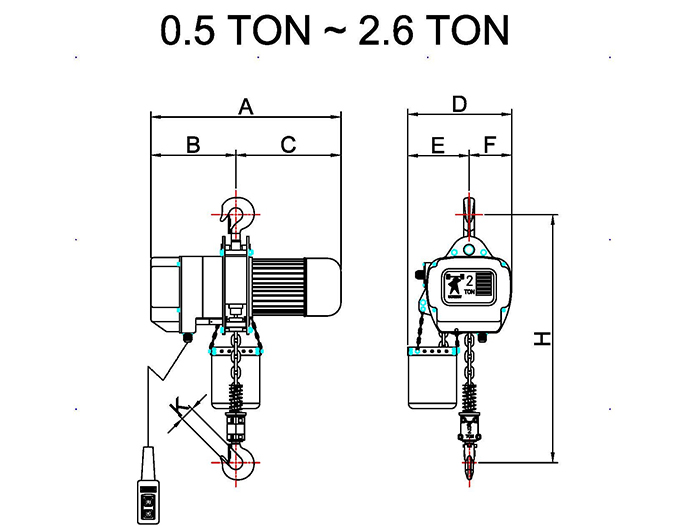

Roping | Chain | Approx. Dimensions (mm) | ||||||||
Motor (kw) |
Speed (m/min) | Dia. (mm) |
Fall | A | B | C | D | E | F | H | |||
YCH-005H1 | 0.5 | 3 | 1.5 | 10 | 7.1 | 1 | 575 | 275 | 300 | 262 | 132 | 130 | 550 |
YCH-010H1 | 1 | 3 | 1.5 | 7.2 | 7.1 | 1 | 575 | 275 | 300 | 262 | 132 | 130 | 550 |
YCH-020H1 | 2 | 3 | 3.75 | 10.6 | 10 | 1 | 660 | 310 | 350 | 390 | 240 | 150 | 665 |
YCH-026H1 | 2.6 | 3 | 3.75 | 7.8 | 11.2 | 1 | 660 | 310 | 350 | 390 | 240 | 150 | 710 |
YCH-030H1 | 3 | 3 | 3.75 | 5.3 | 10 | 1*2 | 660 | 310 | 350 | 390 | 240 | 150 | 850 |
YCH-020S1 | 2 | 3 | 1.5 | 3.6 | 7.1 | 1*2 | 575 | 275 | 300 | 262 | 132 | 130 | 650 |
YCH-030S1 | 3 | 3 | 1.5 | 2.4 | 7.1 | 1*3 | 575 | 275 | 300 | 262 | 132 | 130 | 700 |
YCH-050S1 | 5 | 3 | 3.75 | 3.9 | 11.2 | 1*2 | 660 | 310 | 350 | 390 | 240 | 150 | 884 |
YCH-075S1 | 7.5 | 3 | 3.75 | 2.6 | 11.2 | 1*3 | 660 | 383 | 380 | 512 | 328 | 184 | 980 |
YCH-100S1 | 10 | 3 | 3.75*2 | 3.9 | 11.2 | 2*4 | 768 | 383 | 385 | 900 | 450 | 450 | 1050 |
YCH-005H2 | 0.5 | 3 | 1.5/0.35 | 10/1.6 | 7.1 | 1 | 660 | 300 | 360 | 440 | 240 | 200 | 550 |
YCH-010H2 | 1 | 3 | 1.5/0.35 | 7.2/1.2 | 7.1 | 1 | 660 | 300 | 360 | 440 | 240 | 200 | 550 |
YCH-020H2 | 2 | 3 | 3.75/0.65 | 10/1.6 | 10 | 1 | 710 | 310 | 400 | 390 | 240 | 150 | 665 |
YCH-026H2 | 2.6 | 3 | 3.75/0.65 | 7.8/1.3 | 11.2 | 1 | 710 | 310 | 400 | 340 | 240 | 150 | 710 |
YCH-030H2 | 3 | 3 | 3.75/0.65 | 5.3/0.88 | 10 | 1*2 | 710 | 310 | 400 | 390 | 240 | 150 | 800 |
YCH-020S2 | 2 | 3 | 1.5/0.35 | 3.6/0.6 | 7.1 | 1*2 | 660 | 300 | 360 | 440 | 240 | 200 | 650 |
YCH-030S2 | 3 | 3 | 1.5/0.35 | 2.4/0.4 | 7.1 | 1*3 | 660 | 300 | 360 | 440 | 240 | 200 | 780 |
YCH-050S2 | 5 | 3 | 3.75/0.65 | 3.9/0.65 | 11.2 | 1*2 | 710 | 310 | 400 | 340 | 240 | 150 | 860 |
YCH-075S2 | 7.5 | 3 | 3.75/0.65 | 2.6/0.43 | 11.2 | 1*3 | 710 | 310 | 400 | 512 | 328 | 184 | 980 |
YCH-100S2 | 10 | 3 | 3.75/0.65 | 3.9/0.65 | 11.2 | 2*4 | 818 | 383 | 435 | 986 | 450 | 450 | 1050 |
