Specification

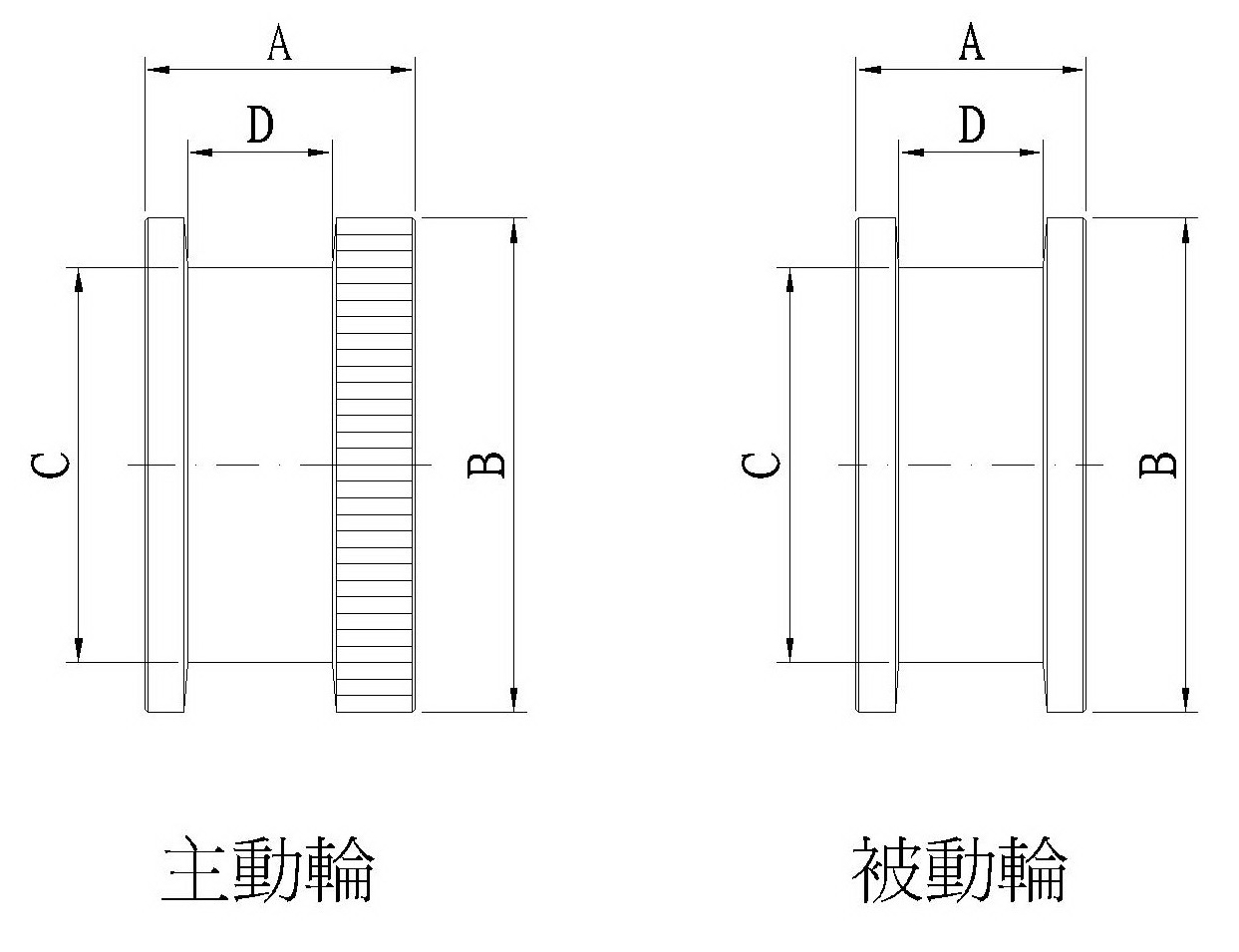

| Model No. | SPEC | MODULS | PITCH | Approx. Dimension (mm) | SHAFT DOMETER |
BEARING | |||
| A | B | C | D | ||||||
| GW-12 | 2 TON | M3 | 48T | 82 | Φ150 | Φ120 | 44 | Φ30 | 6306.Z |
| AW-12 | - | - | 70 | ||||||
| GW-15 | 3 TON | M3 | 58T | 92 | Φ178.5 | Φ150 | 50 | Φ35 | 6307.Z |
| AW-15 | - | - | 78 | ||||||
| GW-22 | 5 TON | M3.5 | 69T | 108 | Φ 248 | Φ 220 | 58 | Φ40 | 6308.Z |
| AW-22 | - | - | 88 | ||||||
| GW-28 | 10 TON | M4 | 80T | 135 | Φ 328 | Φ 230 | 68 | Φ 55 | 6311.Z |
| AW-28 | - | - | 107 | ||||||
| GW-33 | 15 TON | M4 | 90T | 146 | Φ 368 | Φ 285 | 76 | Φ 60 | 6312.Z |
| AW-33 | - | - | 117 | ||||||
| GW-38 | 20 TON | M5 | 87T | 153 | Φ 445 | Φ 330 | 76 | Φ 70 | 6314.Z |
| AW-38 | - | - | 121 | ||||||
| GW-38 | 25 TON | M5 | 87 T | 154 | Φ 445 | Φ 400 | 76 | Φ 70 | 6314.Z |
| AW-38 | - | - | 121 | ||||||
| GW-48 | 30 TON | M6 | 90T | 154 | Φ 552 | Φ 500 | 76 | Φ 70 | 6314.Z |
| AW-48 | - | - | 124 | ||||||
