Electric Wire Rope Hoist
50HZ Monorail Electric Wire Rope Hoist - Dual Speed

Specification

Model No. Load (ton) Lift
(m)
Roping  Traversing Wire Rope Approx. Dimensions (mm)
Motor
(kw)
Speed
(m/min)
Motor
(kw)
Speed
(m/min)
Dia.
(mm)

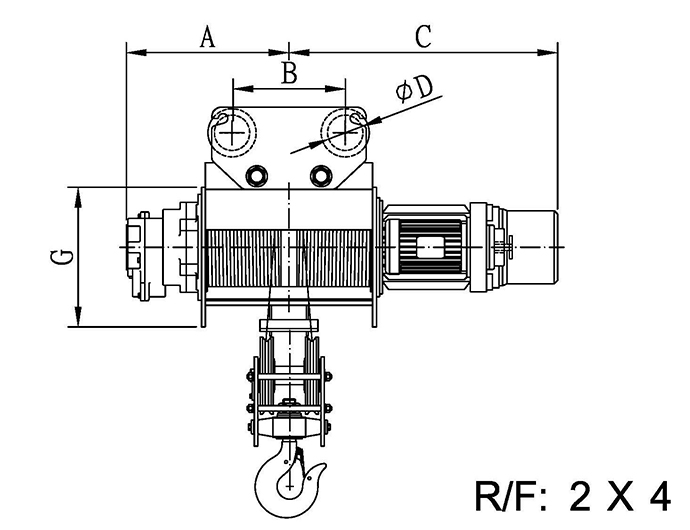

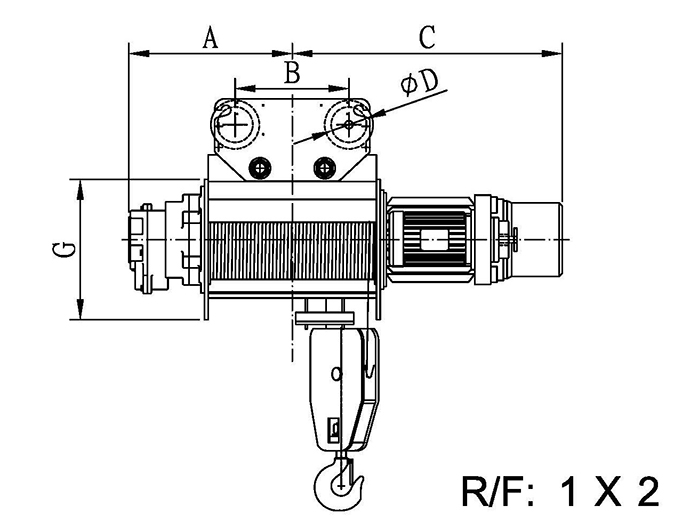

Falls A B C D E F H
YH1-226M 1 6 1.7/0.37 8/0.8 0.37 18 8 1×2 315 250 655 68 400 450 850
YH1-229M 9 350 250 700
YH1-22HM 12 425 300 765
YH2-226M 2 6 3/0.37 6.7/0.67 0.37 18 10 405 250 655 87 400 500 1050
YH2-229M 9 450 250 700
YH2-22HM 12 515 300 765
YH3-226M 3 6 4/0.37 6.3/0.63 0.37 18 12 427 250 737 110 400 500 1150
YH3-229M 9 472 250 782
YH3-22HM 12 532 300 842
YH5-426M 5 6 5.5/0.75 5.4/0.54 0.75 18 12 2×4 590 450 990 125 450 600 1370
YH5-429M 9 640 450 1050
YH5-42HM 12 720 450 1120
YH7-426M 7.5 6 7.5/0.75 5/0.5 0.75 18 14 670 450 1060 125 450 600 1450
YH7-429M 9 740 450 1140
YH7-42HM 12 840 450 1240
YH10-426M 10 6 8.5/1.5 4.3/0.43 1.5 18 16 720 450 11410 140 450 700 1550
YH10-429M 9 800 450 1240
YH10-42HM 12 900 450 1320
YH15-429M 15 9 11/1.5 3.6/0.36 1.5 18 20 925 550 1410 160 450 700 1650
YH15-42HM 12 1025 550 1520
YH20-429M 20 9 18.5/2.2 4.5/0.45 1.5 18 22 1055 600 1400 190 450 700 1900
YH20-42HM 12 1150 600 1530

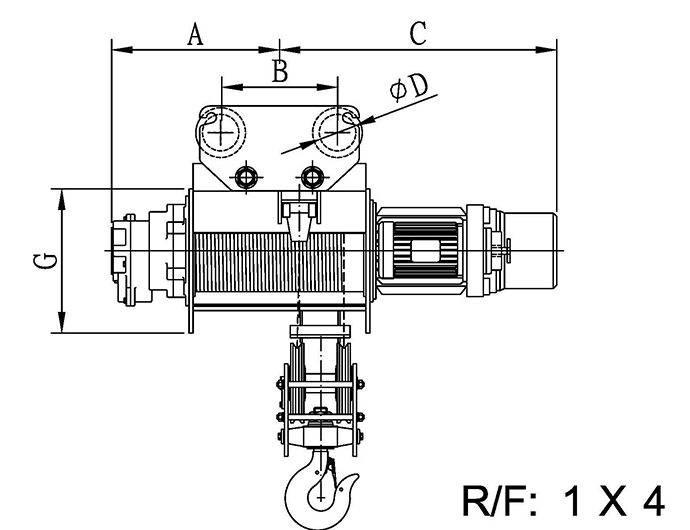

YH5-4526M 5 6 4/0.37 3.8/0.38 0.75 18 12 1×4 540 450 860 125 400 600 1350
YH5-4529M 9 620 450 950
YH5-452HM 12 670 450 990
YH7-4526M 7.5 6 5.5/0.75 3.6/0.36 0.75 18 14 560 450 1000 125 450 600 1430
YH7-4529M 9 670 450 1045
YH7-452HM 12 720 450 1090
YH10-4526M 10 6 7.5/0.75 3.6/0.36 1.5 18 16 610 450 1000 140 450 700 1650
YH10-4529M 9 685 450 1058
YH10-452HM 12 773 450 1166
YH15-4529M 15 9 8.5/1.5 2.8/0.28 1.5 18 20 790 550 1180 160 345 600 1650
YH15-452HM 12 890 550 1280
YH20-4529M 20 9 11/1.5 2.8/0.28 1.5 18 22 810 600 1260 190 375 650 1900
YH20-452HM 12 910 600 1350
