Slide series

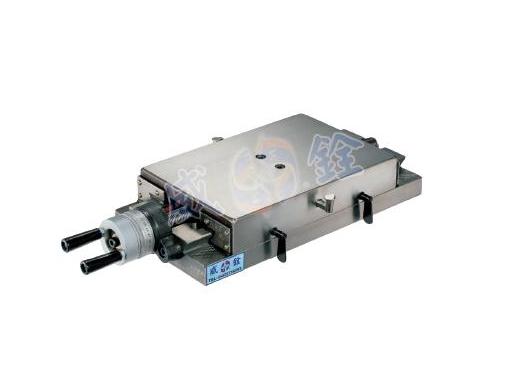

Powerful dovetail slide (teeth)
GU


Material : F C 3 0 or so

Accuracy : ± 0.005 m / m

Features :
Slide structure is stable and strong, sliding surface with the cover of precision grinding processing, the use of gradient tip adjustment push pull tip, scissors, precision group to complete, is a heavy bearing carriage ( can be installed hydraulic cylinder, or ball lead screw, do servo drive ).

Specification



model Cover area  Lower seat area   total height   Travel  Corner scale ring  Weight  Remarks
GU-1 75 x 100 75 x 150 65 50 ø 16 x 2.5 mm / 0.01   6 kg
Flat tip
GU-2 75 x 150 75 x 200 65 50 ø 16 x 2.5 mm / 0.01   9 kg
Flat tip
GU-3 110 x 200 110 x 300 75 100 ø 16 x 2.5 mm / 0.01   14 kg
Flat tip
GU-4 130 x 200 130 x 300 75 100 ø 16 x 2.5 mm / 0.01   16 kg
GU-5 150 x 200 150 x 300 75 100 ø 24 x 2.5 mm / 0.01   19 kg
GU-6 150 x 300 150 x 400 75 100 ø 24 x 2.5 mm / 0.01   25 kg
GU-7 200 x 250 200 x 350 80 100 ø 24 x 2.5 mm / 0.01   31 kg
GU-8 200 x 300 200 x 400 80 100 ø 24 x 2.5 mm / 0.01   33 kg
GU-9 250 x 260 250 x 350 95 90 ø 24 x 2.5 mm / 0.01   48 kg
GU-10 250 x 300 300 x 350 95 50 ø 24 x 2.5 mm / 0.01  ​​​​​​​ 47 kg
GU-11 250 x 300 250 x 400 95  100 ø 24 x 2.5 mm / 0.01  ​​​​​​​ 46 kg
GU-12 250 x 350 250 x 500 95 150 ø 24 x 2.5 mm / 0.01  ​​​​​​​ 57 kg
 GU-13 250 x 450 250 x 700 95 250 ø 24 x 2.5 mm / 0.01  ​​​​​​​ 75 kg
 GU-14 300 x 300 300 x 450 105 150 ø 24 x 2.5 mm / 0.01  ​​​​​​​ 70 kg
 GU-15 300 x 350 300 x 500 105 150 ø 24 x 2.5 mm / 0.01  ​​​​​​​ 82 kg
 GU-16 320 x 350 360 x 420 100 70 ø 24 x 2.5 mm / 0.01  ​​​​​​​ 75 kg
 GU-17 350 x 420 350 x 600 115 180 ø 24 x 2.5 mm / 0.01  ​​​​​​​ 110 kg
 GU-18   380 x 400 440 x 600 100 200 ø 24 x 2.5 mm / 0.01  ​​​​​​​ 110 kg
