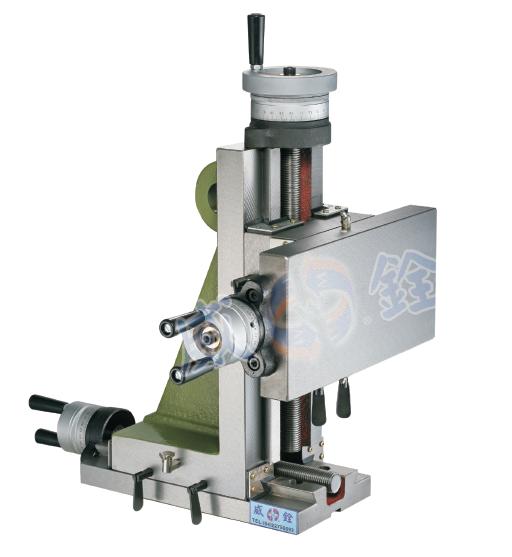

Straight side of the column at the side of the cross slide (three-axis)
L I
Material : F C 3 0 or so
Accuracy : ± 0.005 m / m
Straight angle : ± 0.01 m / m ( stroke 200 m / m )
Features :
The use of the column Siamese cross in the seat, with the side X, Y, Z-axis three-way transmission, sliding surface with the overall precision grinding processing, the use of tilt tip adjustment, pushing pull, scratches, precision group completed,
( Can be installed hydraulic cylinder, or ball screw to do servo drive ).
Specification
Model
|
Side seat area
|
total height |
X travel
|
Y travel | Z travel |
Corner scale ring
|
Weight
|
Remarks
|
| LI-100 | 110 x 200 | 410 | 90 | 170 | 130 | Ø16 x 2.5 mm / 0.01 | 30 kg | Flat tip |
| LI-150 | 150 x 300 | 543 | 150 | 115 | 220 | Ø16 x 2.5 mm / 0.01 | 61 kg | |
| LI-200 | 210 x 400 | 673 | 200 | 110 | 240 | Ø16 x 2.5 mm / 0.01 | 145 kg | |
| LI-250 | 300 x 500 | 817 | 250 | 100 | 260 | Ø16 x 2.5 mm / 0.01 | 250 kg | |
| LI-300 | 300 x 600 | 952 | 300 | 100 | 320 | Ø16 x 2.5 mm / 0.01 | 415 kg |
