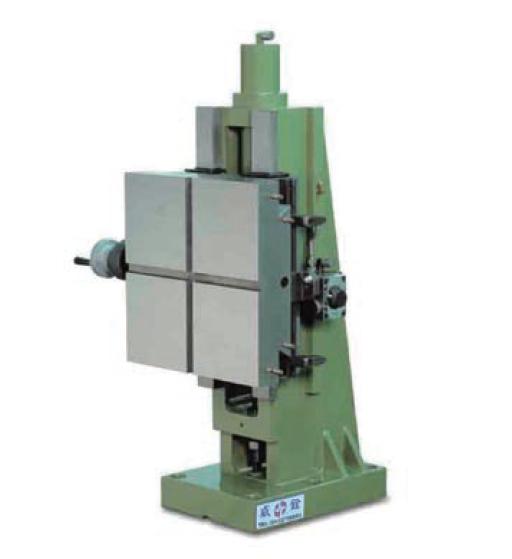

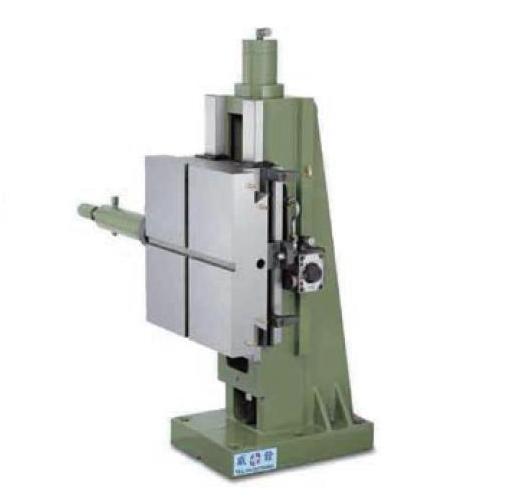

Powerful column side cross slide
LP
Material : F C 25 or more
Accuracy : ± 0.01 m / m
Straight angle : ± 0.05 m / m
Features :
The use of Siamese cross in the seat, the sliding surface after heat treatment, with precision grinding processing, the use of gradient tip adjustment push pull tips, scratches, precision group to complete.
Specification
model
|
LP220-1 | LP220-2 | LP220-3 |
X-axis
cover area
|
300 x 410 | 350 x 420 | 420 x 420 |
Z travel
|
80 | 100 | 120 |
Y travel |
100 | 180 | 180 |
total height
|
840 | 955 | 955 |
Z axis Bore diameter x axis diameter |
Ø 60 x Ø30 | Ø 60 x Ø30 | Ø 60 x Ø30 |
X axis Bore diameter x axis diameter |
Ø 60 x Ø30 | Ø 70 x Ø35 | Ø 70 x Ø35 |
Corner scale ring |
Ø24 x2.5mm/0.01 |
Ø24 x 2.5 mm / 0.01 | Ø24 x 2.5 mm / 0.01 |
total weight ( k g ) |
160 | 225 | 295 |
