Slide series

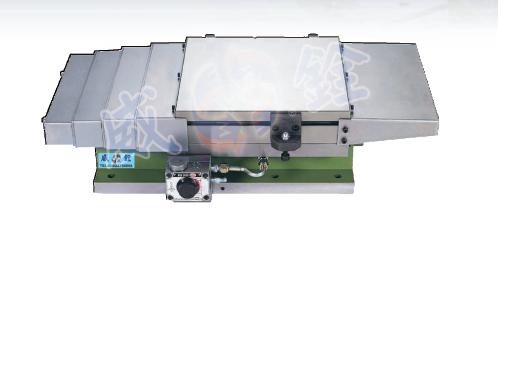

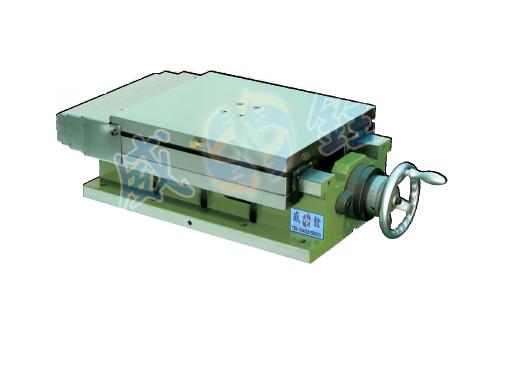

Strong type of character slide
I O
Material : FC 30 or so
Accuracy : ± 0.005 m / m
Features :
Sliding surface by heat treatment HRC - 53 degrees or so, precision grinding processing, pushing the tip, including flowers, precision group to complete Cylinder retreat are buffering devices for heavy cutting. (Can be loaded ball screw to do servo drive)
Specification
Model
|
Cover area |
Lower seat area |
total height |
On the trip |
Bore |
Shaft diameter |
Maximum load weight |
Weight |
IO250-1 |
250 x 420 |
250 x 420 |
162 |
100 |
Ø50 |
Ø20 |
300 kg |
85 kg |
IO250-2 |
250 x 420 |
250 x 670 |
162 |
230 |
Ø50 |
Ø20 |
300 kg |
123 kg |
IO250-3 |
250 x 420 |
250 x 750 |
162 |
310 |
Ø50 |
Ø20 |
300 kg |
130 kg |
IO250-4 |
250 x 420 |
250 x 940 |
162 |
500 |
Ø50 |
Ø20 |
300 kg |
150 kg |
IO250-5 |
250 x 420 |
250 x 1200 |
162 |
760 |
Ø50 |
Ø20 |
300 kg |
170 kg |
