Gantry cross slide
Hard track gantry cross slide series
龍門型十字滑座

Track Cross Longmen Slide ( MODEL: S G )
Material: F C 3 2 or so
Accuracy: ± 0.005 m / m
Features:
the use of rail ball servo cross drive, drilling, attack, milling, grinding
Can be quickly moved down, suitable for light cutting.

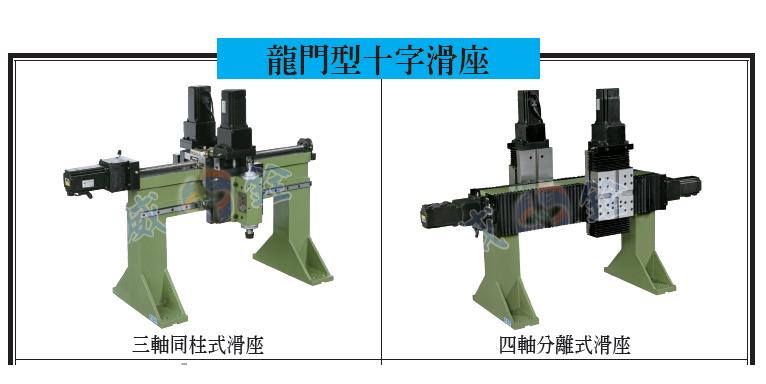

Four-axis Separated Slide ( MODEL: S I )
Material: F C 3 2 or so
Accuracy: ± 0.005 m / m
Features:
 • The use of dual-axis cross-track ball servo (a total of 4-axis) to do
    their own processing energy,
     But also with each other drilling, attack, milling, grinding once
      completed.
  • This series of products can be separated after the (X-axis four-axis)
     With (four-axis Z-axis) a total of eight axes, do multi-functional
      processing efficiency.

Triaxial race column ( MODEL: S B )
Material: F C 3 2 or so
Accuracy: ± 0.005 m / m
Features:
The use of large V-type in the gantry top plane with the servo motor to do transmission transmission, the average balance of the load around the principle of the left and right again to support the two rails 90 degrees to achieve gravity cutting vibration, high precision, left and right side of the use of ball Line operation, while the front can be rough processing, followed by re-finishing or drilling after the first tapping to complete, save processing time.

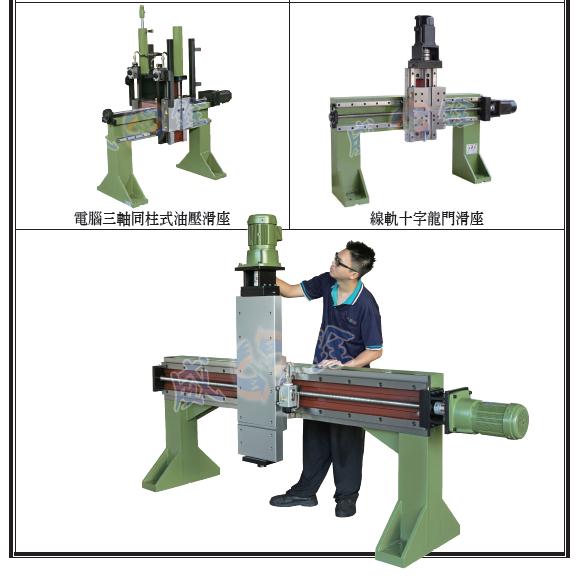

Computer triaxial with column hydraulic slide
 ( MODEL: S C )

Material: F C 3 2 or so
Accuracy: ± 0.005  m / m
Features:
Using large V concave in the gantry top plane with a servo motor to do transmission transmission,
The average balance between the left and right load principle, the side of the left and right again to support the two rails 90 degrees to achieve gravity cutting vibration, high precision, left and right sides Z axis to the way the operation of the hydraulic feed, while feeding in front of rough processing, Followed by re-finishing or drilling after the first tapping to complete, save processing time.
