High precision spindle head series

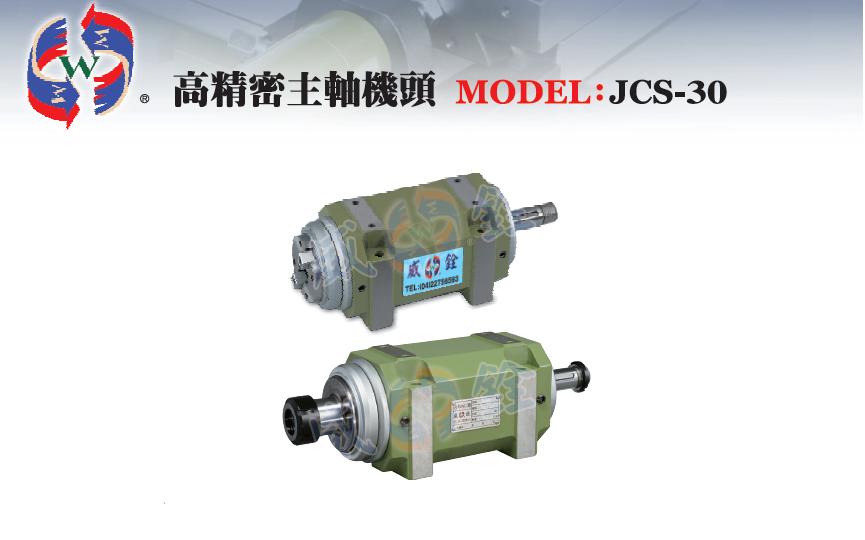

High precision spindle head
JCR(S) -30

Specification

JCS-30  series

Type
Use bearing
Maximum speed Spindle front end accuracy Weight
JCS-30F  # 30206  3000 RPM 0.002 m/m  18 kg
JCS-30N  # 30206  3000 RPM 0.002 m/m  18 kg
JCS-30FH  # 7206  6000 RPM 0.002 m/m  18 kg
JCS-30NH  # 7206  6000 RPM 0.002 m/m  18 kg



JCR-30  series

Type Use bearing Maximum speed Spindle front end accuracy Weight
JCR-30 F  # 30206  3000 RPM 0.002 m/m  19 kg
JCR-30 N  # 30206  3000 RPM 0.002 m/m  19 kg
JCR-30 FH  # 7206  6000 RPM 0.002 m/m  19kg
JCR-30 NH  # 7206  6000 RPM 0.002 m/m  19 kg
Unit :  m / m
Bearing brand JAPAN BEARING ( MADE IN JAPAN )  Japanese original.
