Columns

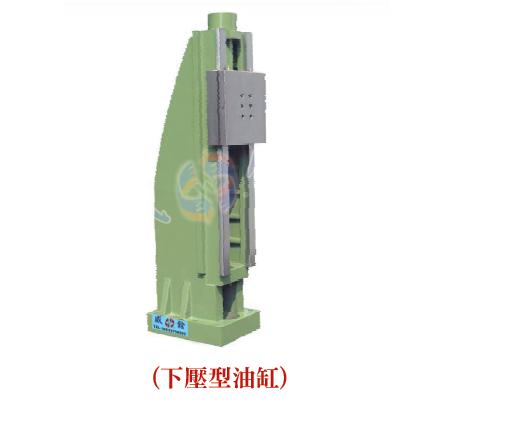

Strong (heavy) column
LQ


Material : F C 3 0 or so
Accuracy :
± 0.005 m / m
Straight angle : ± 0.01 m / m (stroke 200 m / m)
Features :
The use of gravity word slide surface, sliding surface after heat treatment, with the overall precision grinding processing, three tilt tip adjustment, push pull tips, scratches, precision group to complete,( Can be equipped with ball screw to do servo drive ).

Specification



Model
LQ360-1 LQ360-2 LQ360-3 LQ360-4
Cover area
360 X 360 360 X 420 360 X 420 360 X 525
Column height
910 1290 1550 2000


(On the cylinder)

the total height

1035 1690 2200 2900
Z travel
180 520 780 1125
Weight
510 kg  710 kg 800 kg 950 kg
