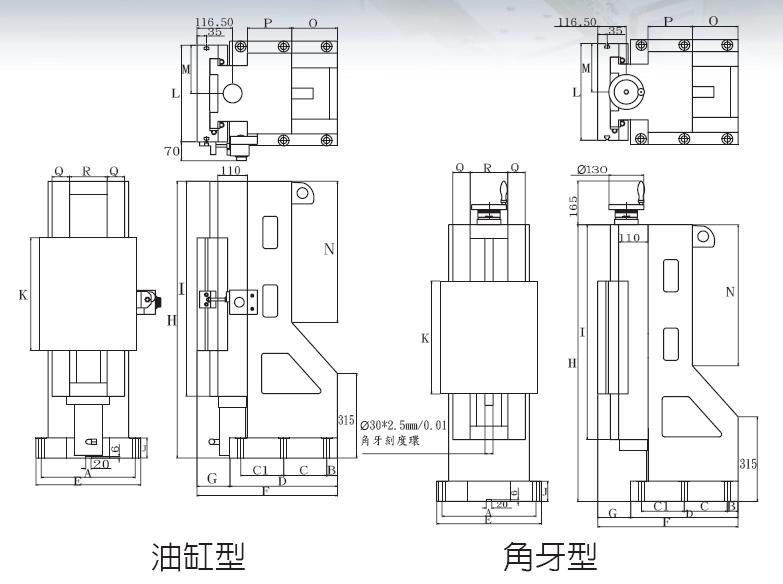

Strong hand (inside wide) column slide
LKO


Material : F C 3 0 or so
Accuracy : ± 0.005 m / m
Straight angle : ± 0.01 m / m ( stroke 200 m / m )
Features :
The use of I-shaped slide, sliding surface hardening treatment, with the overall precision grinding processing, the base wide and solid base, the body space is wide, the motor pulley can be extended to the front and rear motor board, the main shaft to do the balance of gravity cutting, ( Can be equipped with ball screw to do servo drive ).

Specification



Model

LKO 320-1  LKO 320-2   LKO 320-3   LKO 320-4   LKO 320-5

Cover area

320 x 300 320 x 300 320 x 420 320 x 420 320 x 525

Column height

790 1030 1030 1430 1430
Z-axis travel
260 340 220 620 515
Bore
Ø70 Ø70 Ø70 Ø70 Ø70
Shaft diameter
Ø35 Ø35 Ø35 Ø35 Ø35

Weight

210 kg 270 kg 295 kg 350 kg 380 kg
