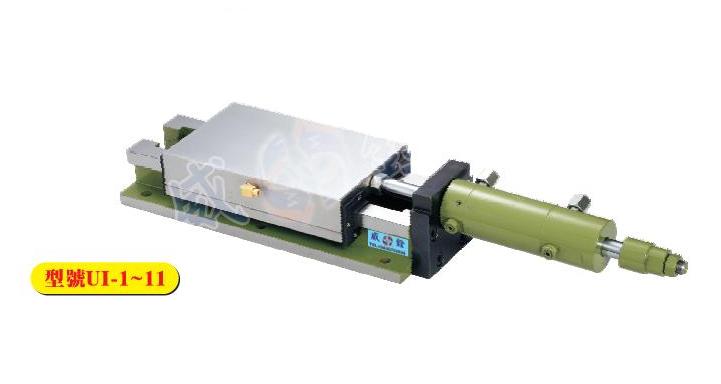

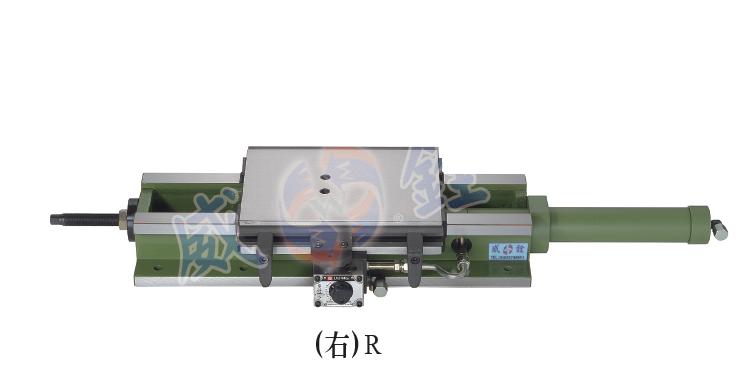

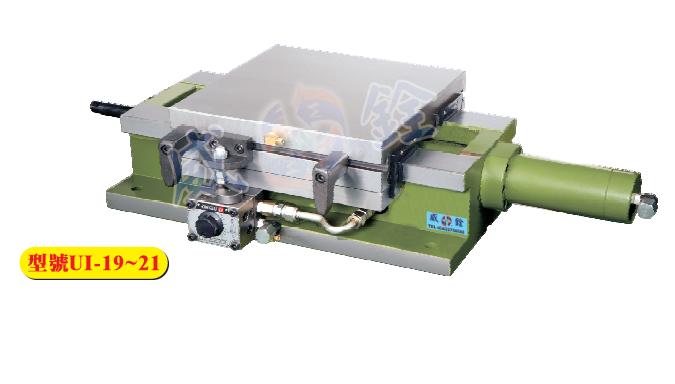

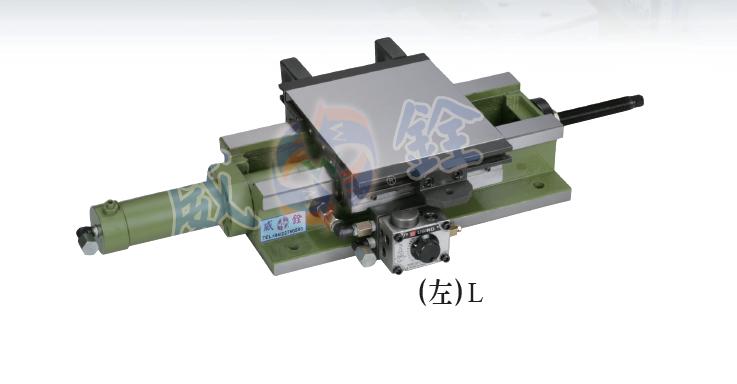

Slide series
Sheap Slip
U I


Material : FC 30 or so

Accuracy : ± 0.005 m / m

Features :
Sliding surface after heat treatment, with the cover of precision grinding processing, the use of gradient tip adjustment, pushing pull tips, including flowers, precision group to complete,( Can be installed hydraulic cylinder or ball screw to do servo drive ).

Specification



model

U I - 1 U I - 2 U I - 3
Cover area


110 x 200

110 x 300 152 x 200

Lower seat area

110 x 300 110 x 400 152 x 200

total height

90 90 90
route
100 100 50
Bore
Ø 40 Ø 40 Ø 40

Shaft diameter

Ø 20 Ø 20 Ø 20
weight
21 kg 24 kg 20 kg

Remarks

Flat tip
Flat tip
Flat tip



model

U I - 4 U I - 5 U I - 6
Cover area

152 x 200

152 x 200 152 x 250

Lower seat area

152 x 300 152 x 400 152 x 300

total height

90 90 90
route
100 200 50
Bore
Ø 40 Ø 40 Ø 40

Shaft diameter

Ø 20 Ø 20 Ø 20
weight
25 kg 30 kg 27 kg

Remarks

Flat tip
Flat tip
Flat tip





model

U I - 7 U I - 8 U I - 9
Cover area

152 x 250

152 x 250 152 x 300

Lower seat area

152 x 400 152 x 500 152 x 400

total height

90 90 90
route
150 250 100
Bore
Ø 40 Ø 40 Ø 40

Shaft diameter

Ø 20 Ø 20 Ø 20
weight
33 kg 38 kg 36 kg

Remarks

Flat tip
Flat tip
Flat tip
