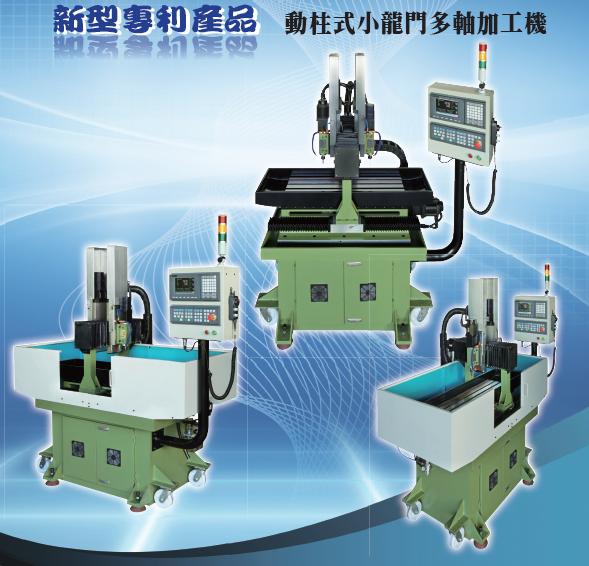

Multi - axis double - headed gantry computer processing mach
Multi - axis Machining Machine
SLM-1


Features ::

1. The top of the door type with V-type hard drive, can carry heavy cutting.
2. Movable column door type sliding, the bottom of the use of dual V-type hard
  rail linkage transmission, cutting is not solid shaking.

3. Pole above the double Z-axis balance linked to a drill can be a drill, a
  rough boring a fine, while rough milling side of the fine milling,
Multi-function processing is completed.

4. Can be used with high-speed spindle to do carving processing.
5. The next seat lock with high load-resistant nylon wheel easy to move, apply
  to the school school computer teaching use.
6. Special specifications (moving column gantry-type multi-axis special
  processing machine), according to customer demand for custom production.

Specification

Model: S L M - 1
1  Door width : 385 m/m 7

Double-axis maximum machining

stroke :    350 ( W ) x  250 ( L )

2

 Workbench area : 350 x 1000 m/m

8

 Height of work : 200 m/m inside

3

 X-axis travel :  680 m/m

9

 Site area : 2000 x 1100 x 2000

( L x W x H )

4

 Y-axis travel :  300 m/m

10

 Use voltage : 220V / 50 A / three directions

5

 Z-axis double-stroke : 180  m/m

11   net weight :   1200  kg
 6

Single shaft maximum

machining stroke :

  350 ( W ) x 680 ( L )

12   unit  :  m / m
