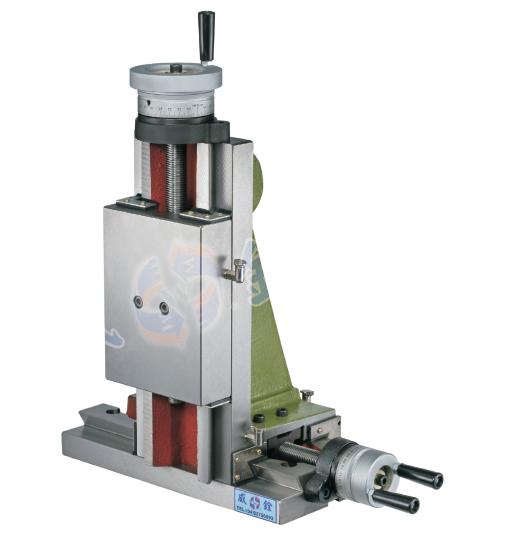

Column bottom horizontal carriage (two-axis)
LB


Material : F C 3 0 or so
Accuracy : ± 0.005 m / m
Straight angle : ± 0.01 m / m (stroke 200 m / m)
Features :
With the pillar in the middle of the seat, horizontal forward sliding, sliding surface with the overall precision grinding processing, the use of tilt tip adjustment, push pull, scratches, precision group to complete, (can be installed hydraulic cylinder, or ball screw to do servo drive ).

Specification



model
LB-100 LB-150 LB-200 LB-250 LB-300

Cover area

100 x 150 150 x 200 200 x 250  250 x 300 300 x 400

Lower seat area

130 x 300 185 x 350 240 x 350 300 x 500 350 x 600

total height

410 548 678 822 952

Z travel

105 185 260 320 350

X travel

200 200 150 250 300

Corner scale ring

Ø16x2.5mm/0.01 Ø24x2.5mm/0.01 Ø24x2.5mm/0.01 Ø24x2.5mm/0.01 Ø24x2.5mm/0.01

weight

23 kg 57 kg 95 kg 180 kg 285 kg
Remarks
Flat tip
