Slide series

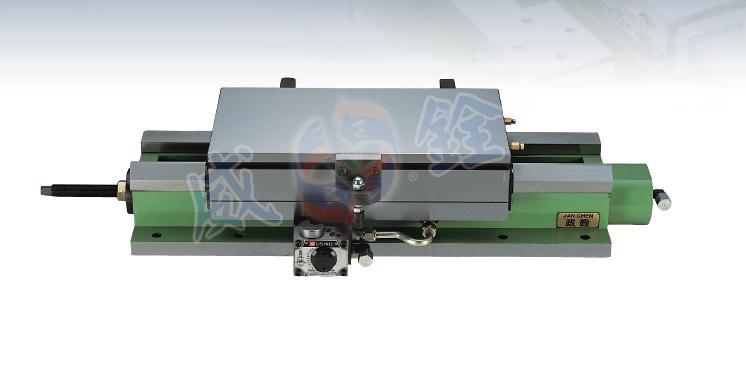

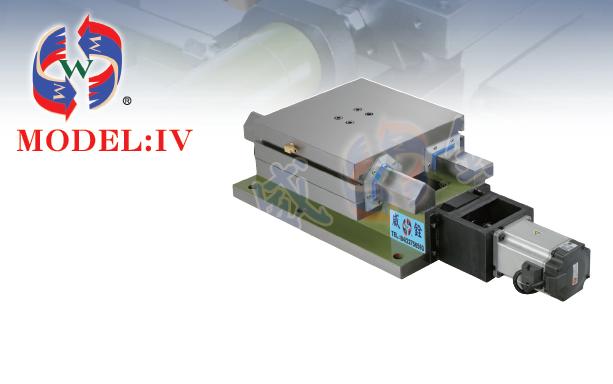

Strong mountain slides
I V
Material : FC 30 or so
Accuracy : ± 0.005 m / m
Features:
Slide with a mountain level, fast round-trip processing accuracy, sliding surface heat treatment HRC 53 degrees or so, precision grinding processing, pushing the tip, including flowers, the cylinder back are buffering device for deep hole drilling and milling, (Can be loaded ball screw to do servo drive).
Specification
Model
|
Cover area | Lower seat area |
total height
|
On the trip | Bore | Shaft diameter | Maximum carrying weight | weight |
|
IV220-1 |
220x300 | 220 x 420 | 162 | 100 | Ø50 | Ø20 | 180 kg | 80 kg |
| IV220-2 |
220x300 |
220 x 520 | 162 | 200 | Ø50 | Ø20 | 180 kg | 85 kg |
|
IV220-3 |
220x410 | 220 x 670 | 162 | 240 | Ø50 | Ø20 | 180 kg | 110 kg |
|
IV220-4 |
220x410 | 220 x 800 | 162 | 370 | Ø50 | Ø20 | 180 kg | 120 kg |
|
IV220-5 |
220 x410 | 220 x 940 | 162 | 510 | Ø50 | Ø20 | 180 kg | 130 kg |
