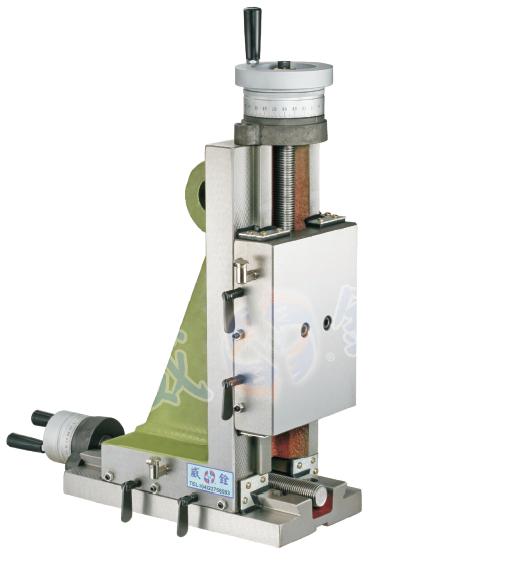

Straight bottom of the column
LA
Material : F C 3 0 or so
Accuracy : ± 0.005 m / m
Straight angle : ± 0.01 m / m (stroke 200 m / m)
Features :
The use of the pillars in the middle of the seat, straight forward sliding, sliding surface with the overall precision grinding processing, the use of gradient tip adjustment, pushing pull, scratches, precision group to complete, ( can be installed hydraulic cylinder, or ball screw to do servo Transmission ).
Specification
model
|
LA-100 | LA-150 | LA-200 |
Cover area
|
100 X 150 | 150 X 200 | 200 X 250 |
Lower seat area |
100 X 300 | 150 X 300 | 200 X 350 |
total heigh |
410 | 543 | 673 |
X travel |
170 | 115 | 110 |
Z travel |
90 | 170 | 235 |
Corner scale ring |
Ø 16 x 2.5 mm / 0.01 | Ø 24 x 2.5 mm / 0.01 | Ø 24 x 2.5 mm / 0.01 |
Weight |
21 kg | 45 kg | 88 kg |
Remarks
|
Flat tip |
|
model
|
LA-250 | LA-300 |
Cover area | 250 X 300 | 300 X 400 |
Lower seat area | 250 X 400 | 300 X 450 |
total height | 817 | 952 |
X travel | 100 | 100 |
Z travel | 295 | 320 |
Corner scale ring | Ø 24 x 2.5 mm / 0.01 | Ø 24 x 2.5 mm / 0.01 |
Weight | 160 kg | 250 kg |
