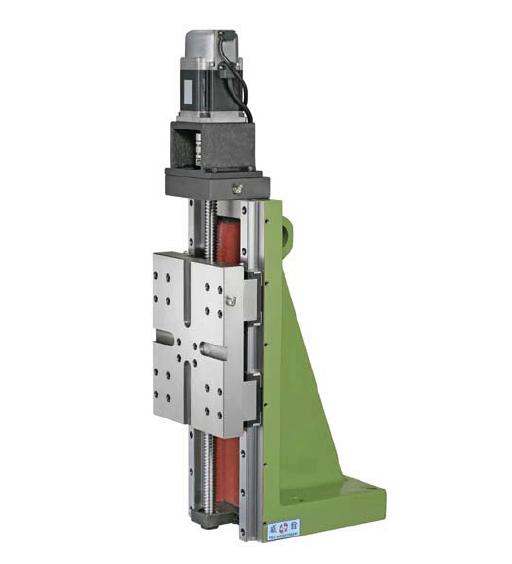

Column (rail ball) servo slide
AG
Material: F C 30 or so
Accuracy: ± 0.05 m / m
Straight angle: ± 0.01 m / m
Features:
The use of precision rails, with precision ball screw, do lift servo drive, suitable for rapid cutting, milling and drilling processing.
Specification
model
|
AG-160 | AG-200 | AG-250 | AG-300 |
Cover area
|
170 X 200 | 220 X 250 | 250 X 300 | 300 X 400 |
total height |
610 | 757 | 907 | 1056 |
stroke |
185 | 260 | 320 | 350 |
Line width
|
20 mm | 23 mm | 28mm | 34 mm |
Ball size
|
Ø16xC5XP5 | Ø20xC5XP5 | Ø25xC5XP5 | Ø32xC5XP5 |
Servo motor specifications |
400 W | 750 W | 850 W | 850 W |
weight ( Kg ) |
50 | 75 | 155 | 250 |
