Slide series
One-way dovetail parallel lift slider
GT
Material : FC 30 or so
Accuracy : ± 0.002 m / m
Features :
(Position not displaced) High precision, load stability, suitable for heavy cutting, the scale ring is 2.5 m / m // 0.01 m (double position) / M.

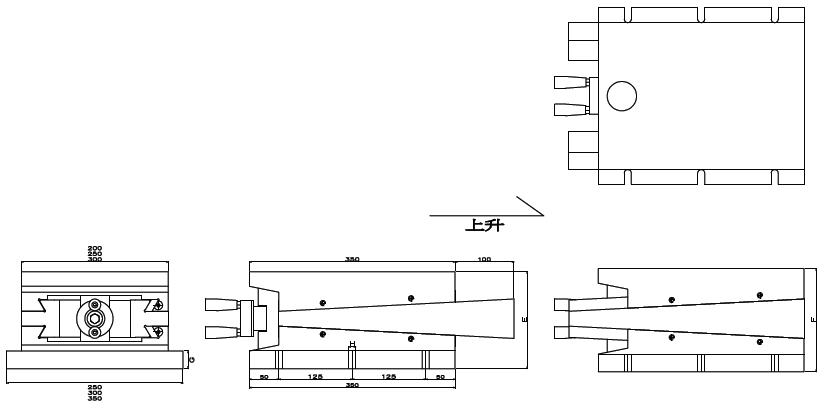

Specification
Model
|
GT-1 | GT-2 | GT-3 |
Cover area
|
200 x 350 | 250 x 350 | 300 x 350 |
Lower seat area
|
250 x 350 | 300 x 350 | 350 x 350 |
Minimum height
|
155 | 165 | 175 |
|
Highest height |
165 | 175 | 185 |
Rise height
|
10 | 10 | 10 |
Base screw hole
|
ψ 12 x 6 holes | ψ 14 x 6 holes | ψ 16 x 6 holes |
|
A |
220 | 270 | 320 |
|
B |
50 | 50 | 50 |
|
C |
125 | 125 | 125 |
|
D |
125 | 125 | 125 |
|
E |
155 | 165 | 175 |
| F | 165 | 175 |
185 |
|
G |
25 | 30 | 35 |
|
H |
ψ 12 | ψ 14 | ψ 16 |
weight
( kg ) |
75 | 100 | 125 |
