Slide series

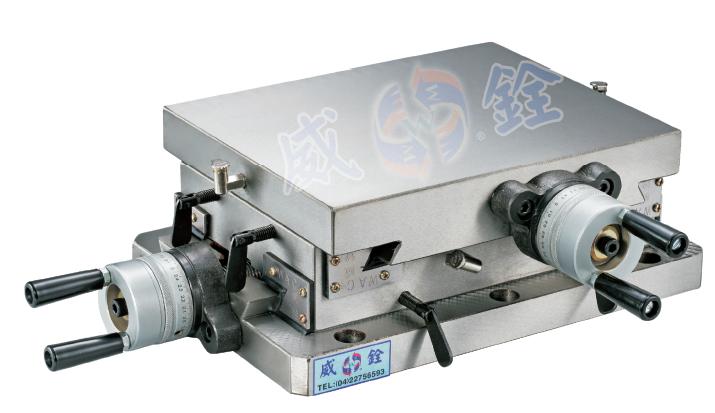

Strong cross table
GA


Material : F C 3 0 or so

Accuracy : ± 0.005 m / m

Straight angle : ± 0.01 m / m (stroke 200 m / m)

Features :
Slide structure is strong, the contact surface is wide, is a heavy cross slide, sliding surface with the overall precision grinding processing, the use of slope tips to adjust the push tip, scissors, precision group to complete, (can be installed hydraulic cylinder or ball guide Screw, do servo drive).

Specification



Model
Cover area
Lower seat area
total height
On the trip
The next trip
Corner scale ring  Weight
GA-1 240 x 300 250 x 360 130 50 60 Ø24 x 2.5 mm / 0.01 53 kg
GA-2 300 x 350 300 x 420 150 60 70 Ø24 x 2.5 mm / 0.01 88 kg
GA-3 360 x 400 360 x 480 155 60 80 Ø24 x 2.5 mm / 0.01 140 kg
GA-4   420 x 450  450 x 550 175 60 100 Ø24 x 2.5 mm / 0.01 195 kg
