Slide series

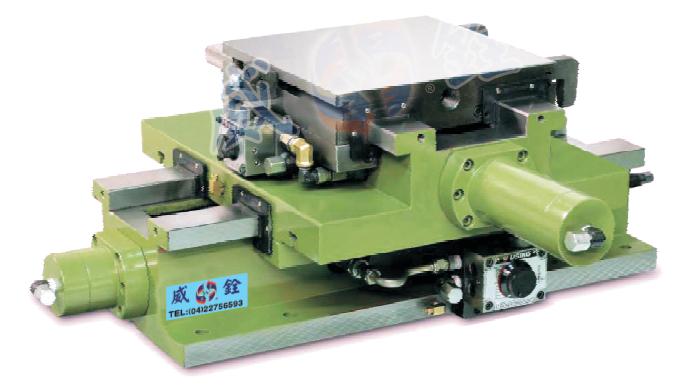

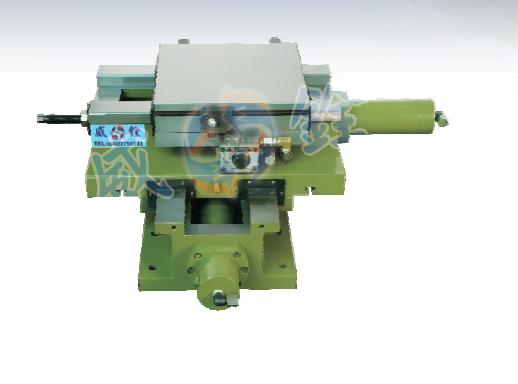

Hydraulic cross (Siamese word) slide
I H


Material : FC 30 or so
Accuracy : ± 0.005 m / m
Straight angle : ± 0.01 m / m (stroke 200 m / m)
Features :
It is suitable for heavy cutting, and the sliding surface of the sliding seat is treated by heat treatment. It adopts the whole precision grinding process, adopts the adjustment of the inclination tip, the pushing tip, the flower, and the precision group. (The ball screw Do servo drive).

Specification



model
I H 220 -1 I H 220 -2 I H 220 -3 I H 220 -4 I H 220 -5
Cover area
220 x 300 220 x 300 220 x 410 220 x 410 220 x 410
Lower seat area
220 x 420 220 x 520 220 x 670 220 x 800 220 x 940

total height

230 230 230 230 230
X (upstroke)
180 180 70 70 70

Y (downstroke)

100 200 350 480 620
X axis bore
Ø50 x Ø20 Ø50 x Ø20 Ø50 x Ø20 Ø50 x Ø20 Ø50 x Ø20
Y axis bore
Ø50 x Ø20 Ø50 x Ø20 Ø50 x Ø20 Ø50 x Ø20 Ø50 x Ø20
weight
140 kg 155 kg 175 kg 190 kg 205 kg
