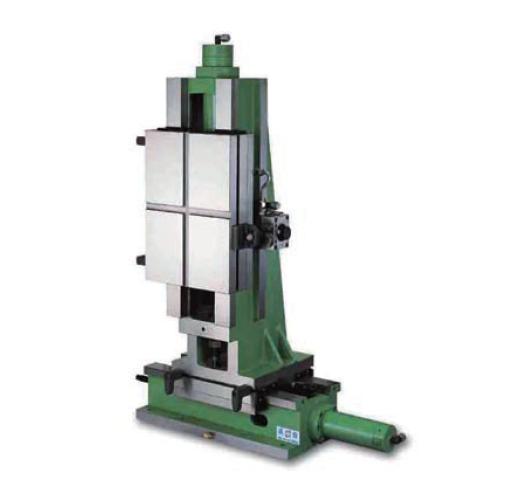

Strong type I-pillar slide (bottom horizontal two-axis)
LN
Material : F C 25 or more
Accuracy : ± 0.01 m / m
Straight angle : ± 0.05 m / m
Features :
The use of I-pillar column Siamese cross base, sliding surface after heat treatment, with the base of the base grinding processing, the use of tilt tip adjustment, pushing the tip, scratches, precision group to complete.
Specification
type |
LN220-1 | LN220-2 | LN220-3 | LN220-4 | LN220-5 |
Z axis cover area |
220 x 300 | 220 x 300 | 220 x 410 | 220 x 410 | 220 x 410 |
Y axis bottom area |
220 x 420 | 220 x 520 | 220 x 670 | 220 x 800 | 220 x 940 |
total height
|
1082 | 1082 | 927 | 927 | 927 |
Z travel |
205 | 205 | 95 | 95 | 95 |
X travel
|
180 | 280 | 430 | 560 | 700 |
Z axis Bore diameter
x
axis diameter
|
Ø60 x Ø30 | Ø60 x Ø30 | Ø60 x Ø30 | Ø60 x Ø30 | Ø60 x Ø30 |
X axis Bore diameter |
Ø50 x Ø20 | Ø50 x Ø20 | Ø50 x Ø20 | Ø50 x Ø20 | Ø50 x Ø20 |
total weight ( kg )
|
155 | 165 | 185 | 195 | 210 |
type |
LN250-1 | LN250-2 | LN250-3 | LN250-4 | LN250-5 |
Z-axis cover area |
250 X 300 | 250 X 420 | 250 X 420 | 250 X 420 | 250 X 420 |
Y axis bottom area |
250 X 420 | 250 X 670 | 250 X 750 | 250 X 940 | 250 X 1200 |
total height
|
1310 | 1190 | 1190 | 1190 | 1190 |
Z travel |
300 | 180 | 180 | 180 | 180 |
Y travel
|
150 | 400 | 480 | 670 | 930 |
Z axis Bore diameter
x
axis diameter
|
Ø70 x Ø35 | Ø70 x Ø35 | Ø70 x Ø35 | Ø70 x Ø35 | Ø70 x Ø35 |
Y axis Bore diameter |
Ø60 x Ø30 | Ø60 x Ø30 | Ø60 x Ø30 | Ø60 x Ø30 | Ø60 x Ø30 |
total weight ( kg )
|
245 | 270 | 285 | 310 | 330 |
type |
LN300-1 | LN300-2 | LN300-3 | LN300-4 | LN300-5 |
Z-axis cover area |
300 x 300 | 300 x 420 | 300 x 420 | 300 x 420 | 300 x 420 |
Y axis bottom area |
300 x 560 | 300 x 670 | 300 x 800 | 300 x 940 | 300 x 940 |
total height
|
1320 | 1085 | 1085 | 1085 | 1085 |
Z travel |
300 | 180 | 180 | 180 | 180 |
X travel
|
100 | 240 | 350 | 480 | 620 |
Z axis Bore diameter
x
axis diameter
|
Ø70 x Ø35 | Ø70 x Ø35 | Ø70 x Ø35 | Ø70 x Ø35 | Ø70 x Ø35 |
X axis Bore diameter |
Ø70 x Ø35 | Ø70 x Ø35 | Ø70 x Ø35 | Ø70 x Ø35 | Ø70 x Ø35 |
total weight ( kg )
|
370 | 385 | 415 | 435 | 455 |
