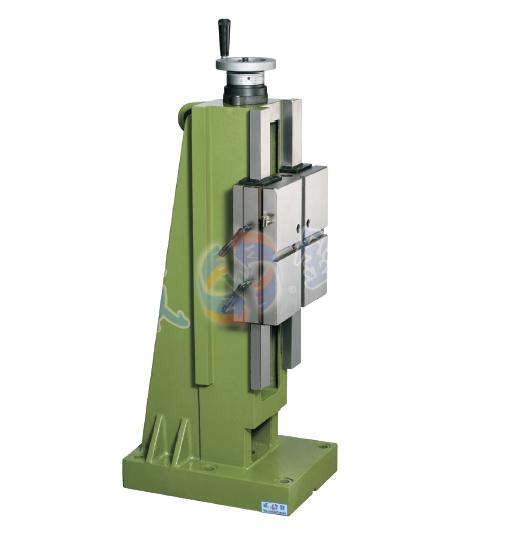

Strong hand column
L K
Material : F C 3 0 or so
Accuracy : ± 0.005 m / m
Straight angle : ± 0.01 m / m ( stroke 200 m / m )
Features :
With the word slide, the sliding surface after heat treatment, with the overall precision grinding processing, three tilt tip adjustment, push pull tip, scratches, precision group to complete, (can be equipped with ball screw to do servo drive).
Specification
Model
|
LK220-1 | LK220-2 |
|
Cover area |
220 X 300 | 220 X 410 |
|
Column height |
775 | 775 |
|
(Hydraulic cylinder) the total height |
995 | 840 |
|
Z-axis travel |
205 | 95 |
|
Bore |
Ø60 | Ø60 |
|
Shaft diameter |
Ø30 | Ø30 |
|
Weight |
120 kg | 130 kg |
Model
|
LK250-1 | LK250-2 |
|
Cover area |
250 X 300 | 250 X 420 |
|
Column height |
890 | 890 |
|
(Hydraulic cylinder) the total height |
1180 | 1060 |
|
Z-axis travel |
300 | 180 |
|
Bore |
Ø70 | Ø70 |
|
Shaft diameter |
Ø35 | Ø35 |
|
Weight |
185 kg | 200 kg |
| Model | LK300-1 | LK300-2 | LK300-3 |
| Cover area | 300 X 300 | 300 X 300 | 300X 420 |
| Column height | 690 | 890 | 890 |
| (Hydraulic cylinder) the total height | 950 | 1190 | 955 |
| Z-axis travel | 120 | 300 | 180 |
| Bore | 70 | 70 | 70 |
| Shaft diameter | 35 | 35 | 35 |
| Weight | 200 kg | 245 kg | 260 kg |
